Bosch Rexroth R162035100

BELLOWS 35 TYP 1 HEAT RESIST.

MPN: R162035100
Category: Accessories for ball rail systems

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

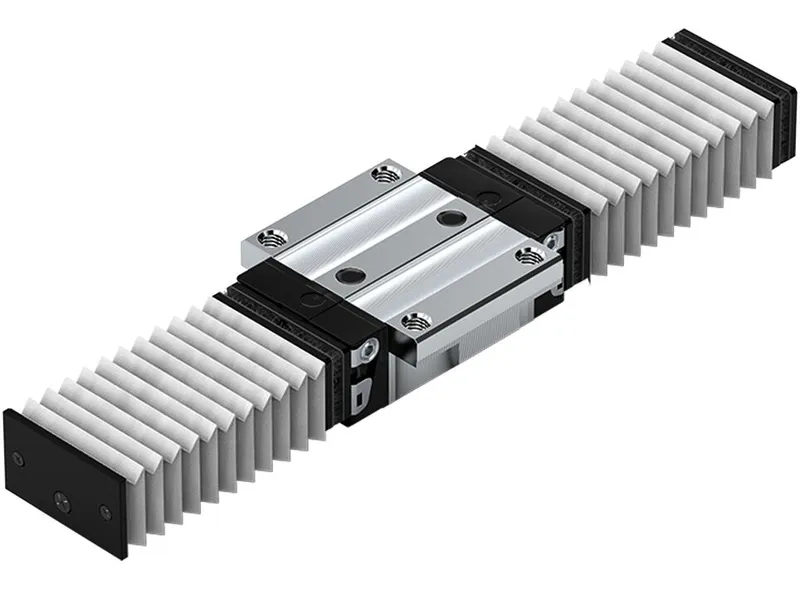

What is the Bosch Rexroth R162035100?

Bellows (heat-resistant) for ball rail systems

Type 1: With lubrication plate and end plate

Size = 35

Material: Nomex fabric, metalized

Temperature rating

Non combustible, non flammable

Resistant to sparks, welding spatter and hot chips.

The protective metal coating can withstand peak temperatures of up to 200°C

Operating temperature for the total bellows max. 80°C

Specifications

Accessories for	Runner block
Nominal size [mm]	35
Type	Type 1
Height runner block with guide rail [mm]	48.0
Weight [kg]	0
Factor U footnote	Calculation factor (see project planning notes)
Dimension A4 (profiled rail system) [mm]	74
Dimension B3 [mm]	12
Dimension H [mm]	48.0
Dimension H3 [mm]	47
Dimension H4 [mm]	54
Dimension K3 (profiled rail systems) [mm]	8
Dimension W [mm]	29.9
