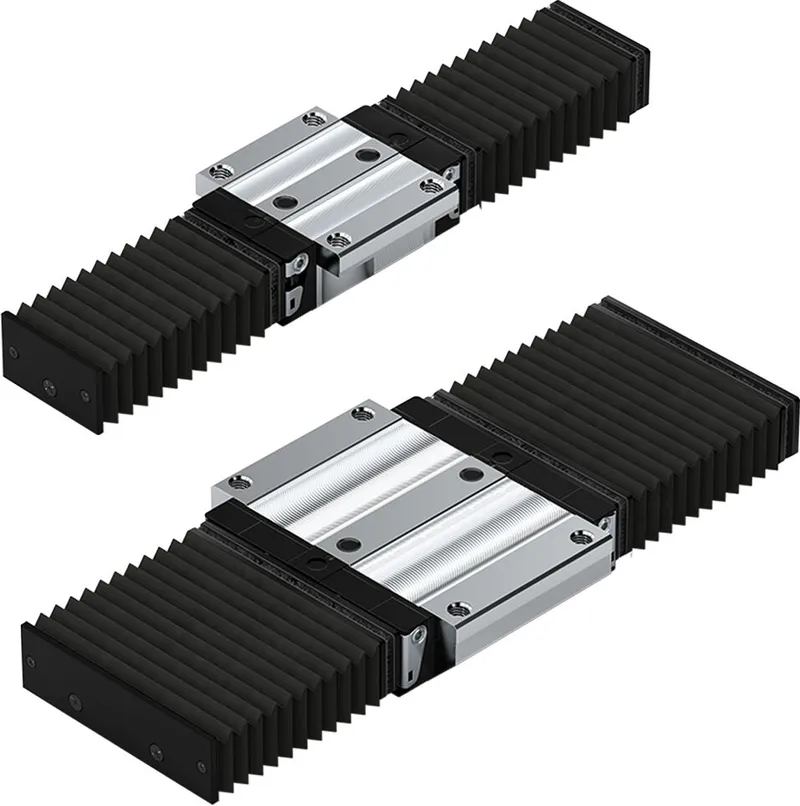

Bosch Rexroth R162020100

BELLOWS 25 TYP 1

MPN: R162020100
Category: Accessories for ball rail systems

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R162020100?

Bellows (standard) for ball rail systems

Type 1: With lubrication plate and end plate

Size = 25

Material: Polyurethane-coated polyester fabric

Aluminum lubrication plate

Specifications

Accessories for	Runner block
Nominal size [mm]	25
Type	Type 1
Height runner block with guide rail [mm]	36.0
Weight [kg]	0
Factor U footnote	Calculation factor (see project planning notes)
Dimension A4 (profiled rail system) [mm]	45
Dimension B3 [mm]	12
Dimension H [mm]	36.0
Dimension H3 [mm]	28.5
Dimension H4 [mm]	35
Dimension K3 (profiled rail systems) [mm]	6
Dimension W [mm]	12.9

R162020100: frequently asked questions

When can R162020100 be shipped?

R162020100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R162020100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R162020100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R162020100, subject to availability and destination.
