Bosch Rexroth R161984282

CLAMPING ELEMENT HK 2005 KR

MPN: R161984282
Category: Accessories for ball rail systems

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

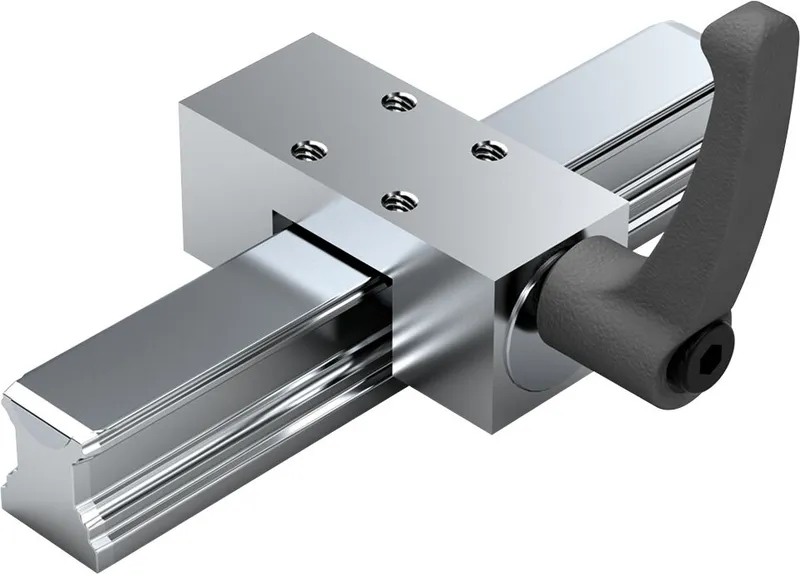

What is the Bosch Rexroth R161984282?

Manual clamping unit HK *) for ball rail systems

Size = 20

Can be used on all SNS ball guide rails

*) Zimmer GmbH

Simple and safe design in compact format

Manually operated Clamping Unit without auxiliary power

Freely adjustable hand lever

Precise positioning

Manual clamping unit

500,000 clamping cycles (B10d value)

Symmetrical force application on ball guide rail via floating contact profiles

Holding forces up to 2000 N

Can be used on all SNS ball guide rails

Specifications

Accessories for	Runner block
Nominal size [mm]	20
Tightening torque [Nm]	5
Holding force [N]	1200
Permissible ambient temperature (min. ... max.)	0 °C ... +70 °C
Weight [kg]	0.24
Footnote 1 holding force	The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).

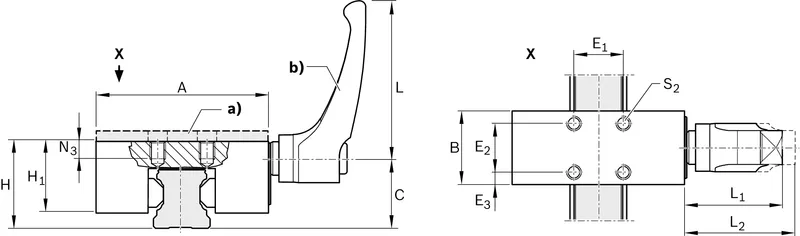

Dimension A (profiled rail systems) [mm]	60
Dimension B (profiled rail systems) [mm]	24
Dimension C [mm]	24.5
Dimension E1 [mm]	15
Dimension E2 (profiled rail systems) [mm]	15
Dimension E3 (profiled rail systems) [mm]	4.5
Dimension H [mm]	30.0
Dimension H1 (profiled rail systems) [mm]	23
Dimension L [mm]	44
Dimension L1 [mm]	30
Dimension L2 [mm]	33
Dimension N3 (profiled rail systems) [mm]	6
Dimension S2 thread diameter (profiled rail systems) [mm]	M5
Footnote Dimension H1	Ball runner block .H. (...High...) Spacer plate necessary.
