Bosch Rexroth R161974031

BRAKING ELEMENT MBPS 3005 AS1A

MPN: R161974031
Category: Accessories for ball rail systems

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R161974031?

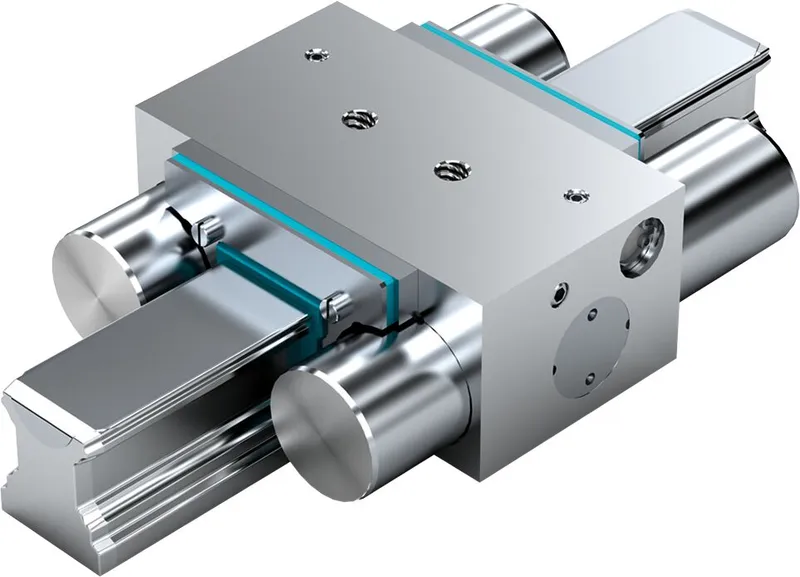

Pneumatic braking unit MBPS *) , FLS for ball rail systems

Size = 30

Can be used on all SNS ball guide rails

*) Zimmer GmbH

Clamps and brakes with spring energy accumulator

Positive-locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect

Dynamic and static stabilization in the axial direction

Clamps and brakes without pressurization (spring energy)

Clamping and Braking Units in short format

Up to 1 million clamping cycles

Up to 2,000 emergency braking operations

Integrated all-round sealing

High continuous output

High positioning accuracy

Mechanical gate valve gear mechanism

Solid, rigid steel housing, chemically nickel-plated

Low air consumption

Maintenance-free

5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection

Can be used on all SNS ball guide rails

Add-ons with three pistons connected in series combined with strong springs result in holding forces up to 4,700 N at just 4.5 bar release pressure

Specifications

Accessories for	Runner block
Nominal size [mm]	30
Note: spring energy holding force with standard air port	Holding force by spring energy at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Permissible ambient temperature (min. ... max.)	0 °C ... +70 °C
Weight [kg]	1.26
Air consumption (normal liter) standard air port [dm³/stroke]	0.065

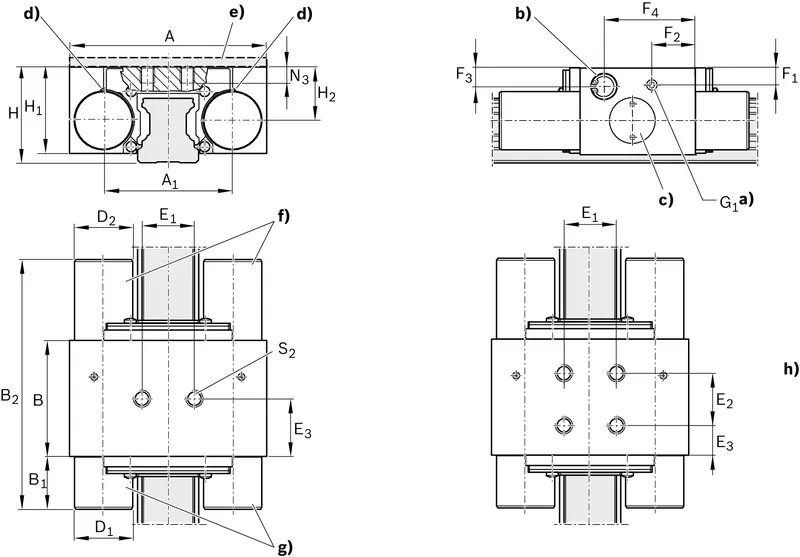

Dimension A (profiled rail systems) [mm]	90
Dimension A1 (profiled rail systems) [mm]	58
Dimension B (profiled rail systems) [mm]	47
Dimension B1 [mm]	29
Dimension D1 [mm]	25
Dimension D2 [mm]	25
Dimension E1 [mm]	22
Dimension E3 (profiled rail systems) [mm]	23
Dimension F1 [mm]	7.2
Dimension F2 [mm]	30.5
Dimension H [mm]	42.0
Dimension H1 (profiled rail systems) [mm]	38.5
Dimension H2 (profiled rail systems) [mm]	24
Dimension N3 (profiled rail systems) [mm]	9
Dimension S2 thread diameter (profiled rail systems) [mm]	M8
Footnote Dimension H1	Ball runner block .H. (...High...) Spacer plate necessary.
Height of guide rail H2 [mm]	24.0
