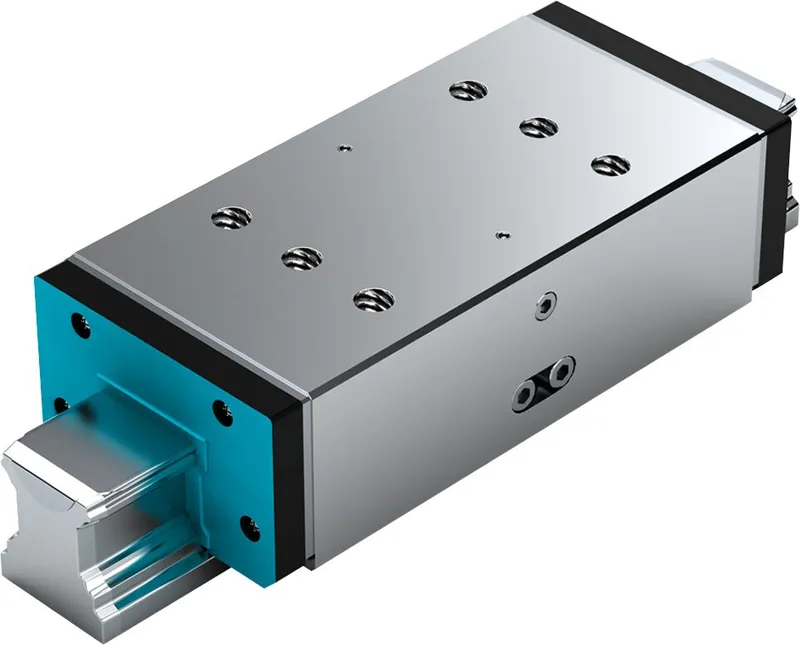

Bosch Rexroth R161964020
BRAKING ELEMENT KBH 6505 AS2A
- MPN
- R161964020
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R161964020?
Hydraulic braking unit KBH (hydraulic clamping and braking units) *) , SLS for ball rail systems
Size = 65
Can be used on all SNS ball guide rails
*) Zimmer GmbH
Very high axial holding forces
Dynamic and static stabilization in the axial direction
Heavy-duty brake
Compact design, compatible with DIN 645
Clamps and brakes with pressure
Can be used on all SNS ball guide rails
Up to 1 million clamping cycles
Up to 2,000 emergency braking operations
Threaded on both sides for the hydraulic connection
Solid, rigid steel housing, chemically nickel-plated
High positioning accuracy
Release pressure 150 bar
Integrated all-round sealing
Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage
Integrated positive-locking, large-surface contact profiles for maximum axial rigidity
Super heavy-duty model
Low displacement
10 million clamping cycles (B10d value)
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 65 |
| Holding force [N] | 22700 |
| Permissible ambient temperature (min. ... max.) | 0 °C ... +70 °C |
| Weight [kg] | 13.44 |
| Footnote 1 holding force | The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| Note: holding force 2 | At 150 bar |
| Displacement footnote | Per clamping |
| Displacement [cm³] | 3.8 |

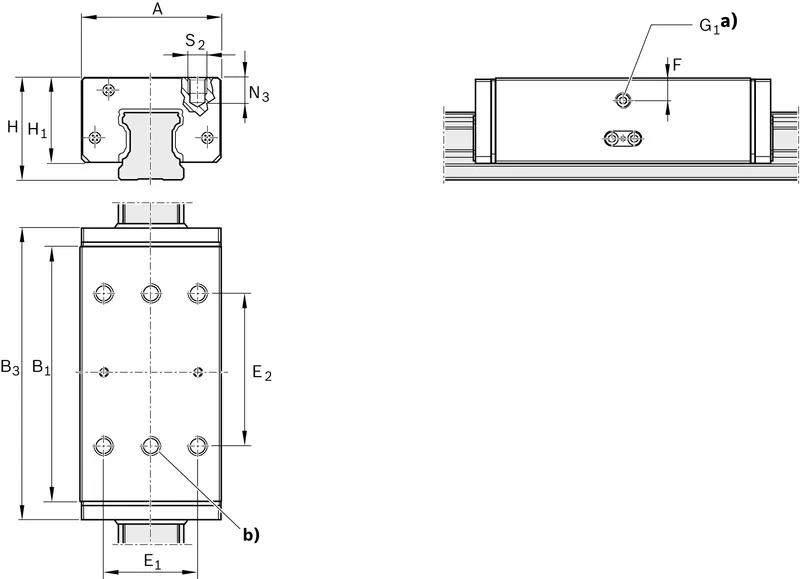

| Dimension A (profiled rail systems) [mm] | 126 |
| Dimension B1 [mm] | 227 |
| Dimension E1 [mm] | 76 |
| Dimension E2 (profiled rail systems) [mm] | 120 |
| Dimension F [mm] | 20 |
| Dimension H [mm] | 90.0 |
| Dimension H1 (profiled rail systems) [mm] | 76 |
| Dimension N3 (profiled rail systems) [mm] | 21 |
| Dimension S2 thread diameter (profiled rail systems) [mm] | M16 |
