Bosch Rexroth R161954021

BRAKING ELEMENT KBH 5505 AS1A

MPN
R161954021
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R161954021?

Hydraulic braking unit KBH (hydraulic clamping and braking units) *) , FLS for ball rail systems

Size = 55

Can be used on all SNS ball guide rails

*) Zimmer GmbH

Very high axial holding forces

Dynamic and static stabilization in the axial direction

Heavy-duty brake

Compact design, compatible with DIN 645

Clamps and brakes with pressure

Can be used on all SNS ball guide rails

Up to 1 million clamping cycles

Up to 2,000 emergency braking operations

Threaded on both sides for the hydraulic connection

Solid, rigid steel housing, chemically nickel-plated

High positioning accuracy

Release pressure 150 bar

Integrated all-round sealing

Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage

Brake shoes with integrated positive-locking, large-surface contact profiles for maximum axial rigidity

Super heavy-duty model

Low displacement

10 million clamping cycles (B10d value)

Specifications

Specifications

Accessories forRunner block
Nominal size [mm]55
Holding force [N]13700
Note: holding force 3At 150 bar
Permissible ambient temperature (min. ... max.)​0 °C ... +70 °C
Weight [kg]8.48
Footnote 1 holding forceThe inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Displacement footnotePer clamping
Displacement [cm³]2.4

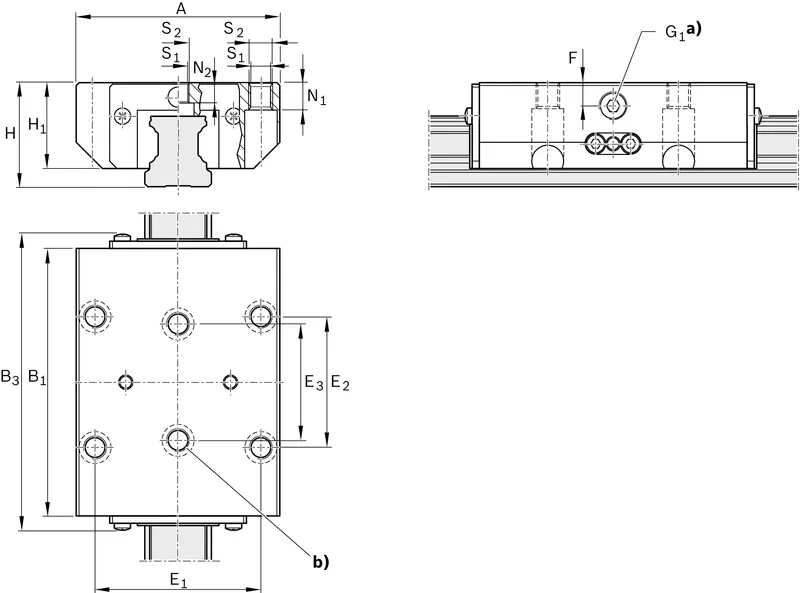

Dimension A (profiled rail systems) [mm]140
Dimension B1 [mm]184
Dimension E1 [mm]116
Dimension E2 (profiled rail systems) [mm]95
Dimension E3 (profiled rail systems) [mm]70
Dimension F [mm]16
Dimension H [mm]70.0
Dimension H1 (profiled rail systems) [mm]57
Dimension N1 (profiled rail systems) [mm]18
Dimension N2 (profiled rail systems) [mm]13.5
Dimension S1 (profiled rail systems) [mm]12.5
Dimension S2 thread diameter (profiled rail systems) [mm]M14
