Bosch Rexroth R161944260

CLAMPING ELEMENT MK 4505 AK &

MPN
R161944260
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R161944260?

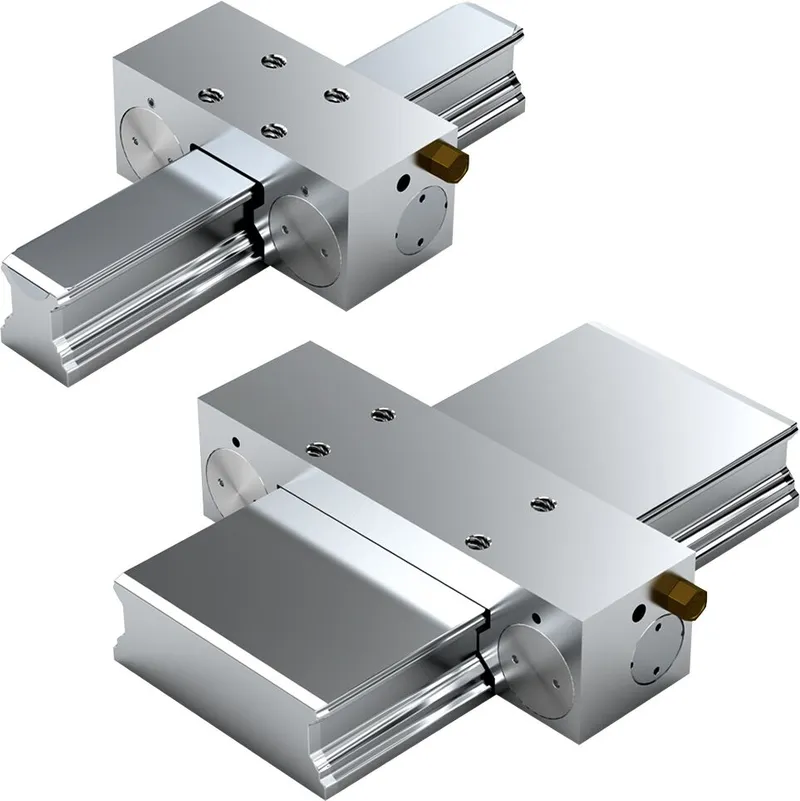

Pneumatic clamping unit MK *) for ball rail systems

Size = 45

Can be used on all SNS ball guide rails

*) Zimmer GmbH

High axial holding forces with short format

Dynamic and static stabilization in the axial direction

Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio

Easy mounting

Clamps with compression (pneumatic) The clamping profiles are pressed by compressed air via a dual acting gate valve gear mechanism.

Chemically nickel-plated steel housing

High axial and horizontal rigidity

Precise positioning

Continuously adjustable pressure from 4 - 8 bar

Decompression with spring force. A preloaded return spring allows for short decompression cycles.

5 million clamping cycles (B10d value)

Specifications

Specifications

Accessories forRunner block
VersionAll ball guide rails SNS
Nominal size [mm]45
Note: spring energy holding force with standard air portHolding force by spring energy at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Permissible ambient temperature (min. ... max.)​0 °C ... +70 °C
Weight [kg]1.66
Air consumption (normal liter) standard air port [dm³/stroke]0.041

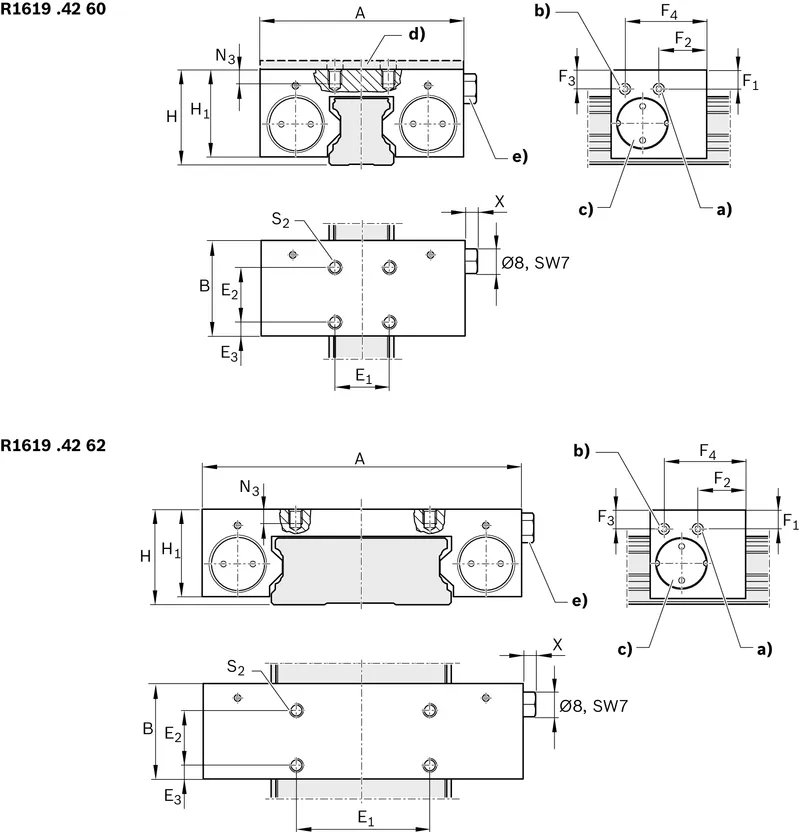

Dimension A (profiled rail systems) [mm]120
Dimension B (profiled rail systems) [mm]49
Dimension E1 [mm]26
Dimension E2 (profiled rail systems) [mm]26
Dimension E3 (profiled rail systems) [mm]11.5
Dimension F1 [mm]14.5
Dimension F2 [mm]19.5
Dimension H [mm]60.0
Dimension H1 (profiled rail systems) [mm]52
Dimension N3 (profiled rail systems) [mm]15
Dimension S2 thread diameter (profiled rail systems) [mm]M10
Dimension X (profiled rail systems) [mm]5.5
Footnote Dimension H1Ball runner block .H. (...High...) Spacer plate necessary.

R161944260: frequently asked questions

When can R161944260 be shipped?

R161944260 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R161944260 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R161944260 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R161944260, subject to availability and destination.
