Bosch Rexroth R161922500

LUBRICATING UNIT 25

MPN: R161922500
Category: Accessories for ball rail systems

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R161922500?

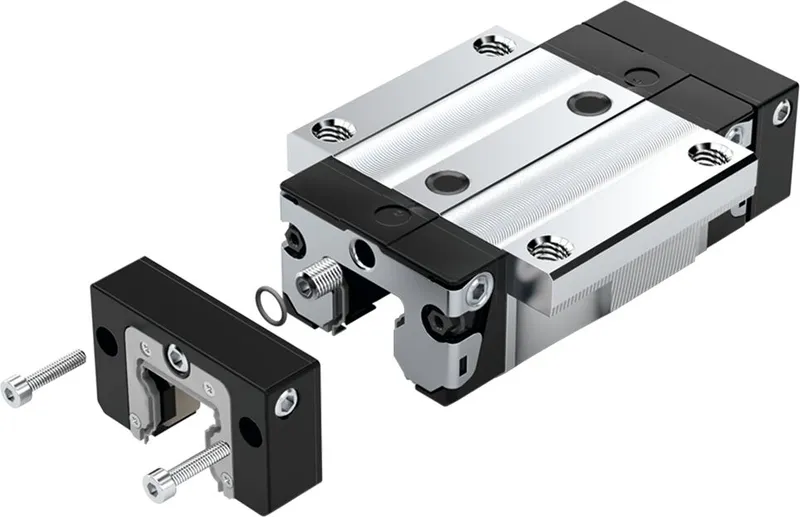

Front lube unit for ball rail systems

Size 25

For a travel distance of up to 25,000 km without re-lubrication

Ball runner block only requires initial lubrication with grease

Front lube units on both sides of the ball runner block

Low lubricant loss

Reduced oil consumption

No lubrication lines

Front lube unit can be refilled using the lube nipple on the end-face or at the side.

Lube connection on the end-face of the front lube unit is suitable for lubricating the ball runner block with grease.

Specifications

Accessories for	Runner block
Nominal size [mm]	25
Tightening torque [Nm]	0.6
Height runner block with guide rail [mm]	36.0
Operating temperature (min. … max.)	+60 °C
Weight [kg]	0.06
Maximum operating temperature [°C]	+60
Possible travel distance s with front lube units	25000

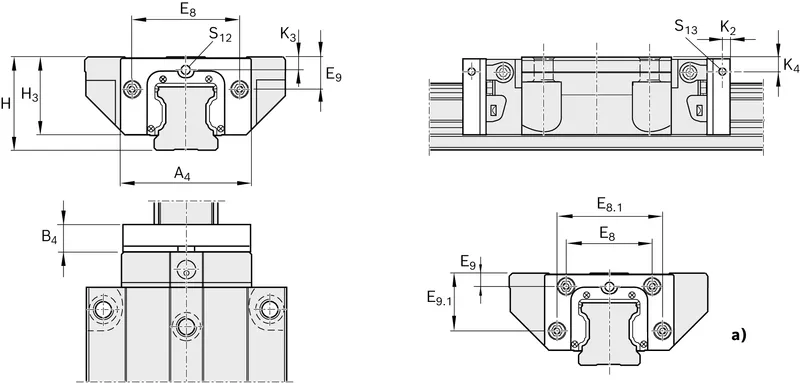

Dimension A4 (profiled rail system) [mm]	47
Dimension B4 [mm]	13
Dimension E8 (profiled rail systems) [mm]	38.3
Dimension E9 (profiled rail systems) [mm]	11.5
Dimension H [mm]	36.0
Dimension H3 [mm]	29.3
Dimension K2 (profiled rail systems) [mm]	5
Dimension K3 (profiled rail systems) [mm]	5.5
Dimension K4 (profiled rail systems) [mm]	5.5
