Bosch Rexroth R161912500

LUBRICATING UNIT 15

MPN
R161912500
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

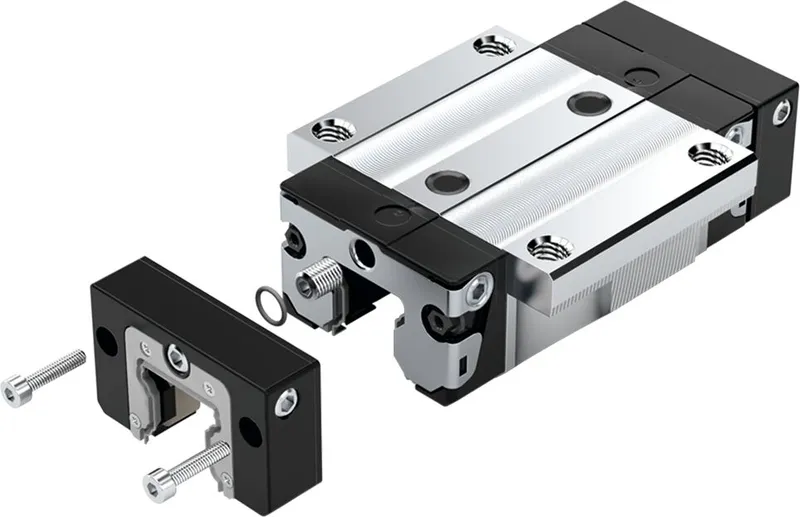

What is the Bosch Rexroth R161912500?

Front lube unit for ball rail systems

Size 15

For a travel distance of up to 25,000 km without re-lubrication

Ball runner block only requires initial lubrication with grease

Front lube units on both sides of the ball runner block

Low lubricant loss

Reduced oil consumption

No lubrication lines

Front lube unit can be refilled using the lube nipple on the end-face or at the side.

Lube connection on the end-face of the front lube unit is suitable for lubricating the ball runner block with grease.

Specifications

Specifications

Accessories forRunner block
Nominal size [mm]15
Tightening torque [Nm]0.3
Height runner block with guide rail [mm]24.0
Operating temperature (min. … max.)+60 °C
Weight [kg]0.05
Maximum operating temperature [°C]+60
Possible travel distance s with front lube units15000

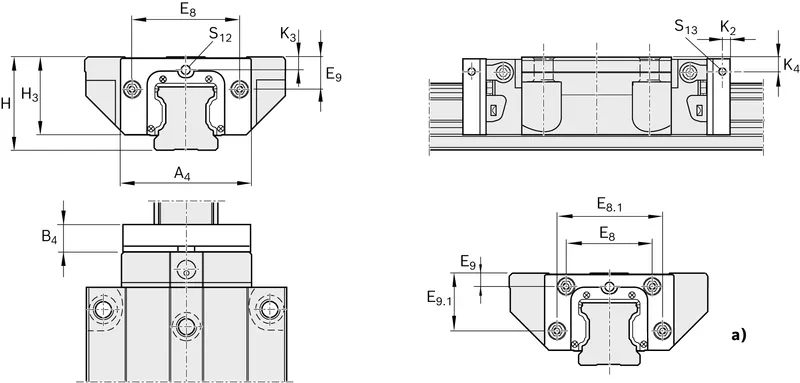

Dimension A4 (profiled rail system) [mm]31.8
Dimension B4 [mm]11.5
Dimension E8 (profiled rail systems) [mm]24.55
Dimension E9 (profiled rail systems) [mm]6.7
Dimension H [mm]24.0
Dimension H3 [mm]19.4
Dimension K2 (profiled rail systems) [mm]5
Dimension K3 (profiled rail systems) [mm]3.35
Dimension K4 (profiled rail systems) [mm]3.35

R161912500: frequently asked questions

When can R161912500 be shipped?

R161912500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R161912500 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R161912500 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R161912500, subject to availability and destination.
