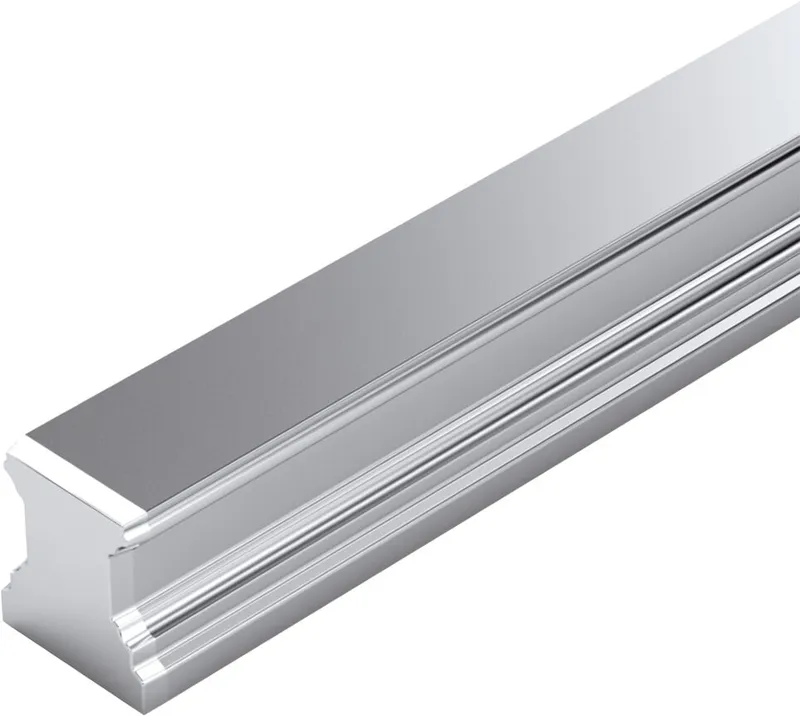

Bosch Rexroth R160780332

BALL GUIDE RAIL CARBON STEEL KSA-020-SNS-H-MB-00

MPN
R160780332
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R160780332?

The ball guide rail is highly precise and characterized by the following product features:

Size 20

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of carbon steel CS

Fastener MB: Bolting from below

Cover 00: Without cover

Accuracy class high

Number of partial sections: 2

Rail in standard version

Best sealing action of end seals

Greater side loads permitted

For mounting from below

Maximum rigidity in all load directions

High torque load capacity

No extra space needed at rail ends

Specifications

Specifications

VersionBall rail system
Nominal size [mm]20
FormatSNS - Standard guide rail
Material (profiled rail systems)Carbon steel
Accuracy classH - Highly accurate
Guide rail mountingFor bolting from below
Guide rail coverWithout cover strip
Max. length Lmax [mm]5816.0
Minimum length Lmin [mm]80.0
Number of holes nB (profiled rail systems)64
Number of sections2-piece
Mass m (kg/m) [kg/m]2.4
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)100 °C admissible for short time. For operation at negative temperatures, please consult us.
Weight [kg]0
Recommended rail length (formula)L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Product informationPlease configure the product to add it to the shopping cart.
Pitch T guide rail [mm]60
Dimension A2 (profiled rail systems) [mm]20
Dimension H2 without cover strip (profiled rail systems) [mm]20.55
Dimension N7 (profiled rail systems) [mm]9
Dimension S7 thread diameterM6
Dimension T [mm]60
Dimension T1 max (profiled rail systems) [mm]50
Dimension T1 min [mm]10
Dimension T1 s (profiled rail systems) [mm]28
Footnote of dimension T1 s (profiled rail systems)Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended.
