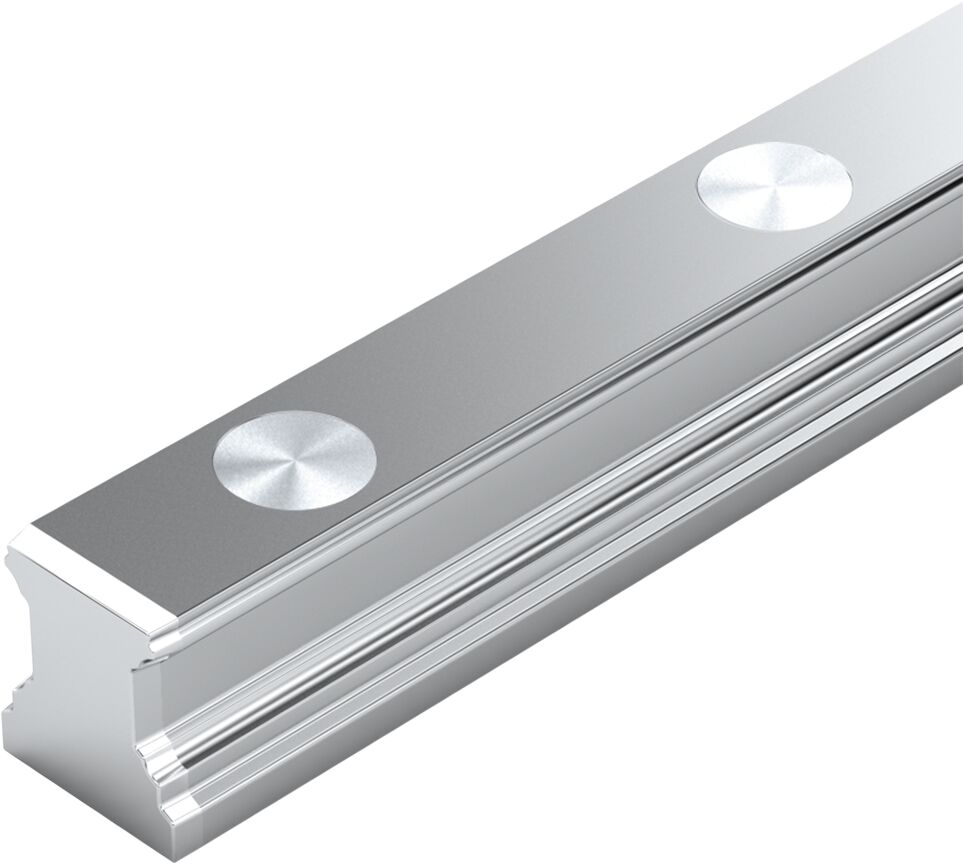

Bosch Rexroth R160645232
BALL GUIDE RAIL CARBON STEEL KSA-045-SNS-P-MA-SK
- MPN
- R160645232
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R160645232?
The ball guide rail is highly precise and characterized by the following product features:
Size 45
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of carbon steel CS
Fastener MA: Bolting from above
Cover SK: Steel caps (must be ordered separately)
Accuracy class precision
Number of partial sections: 2
Rail in standard version
Area of application: For very harsh environments
More resistant to mechanical influences (e.g. shocks)
For mounting from above
For steel caps
Maximum rigidity in all load directions
High torque load capacity
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 45 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Carbon steel |
| Accuracy class | P - Precise |
| Guide rail mounting | For bolting from above |
| Guide rail cover | With steel caps |
| Max. length Lmax [mm] | 5771.0 |
| Minimum length Lmin [mm] | 137.0 |
| Number of holes nB (profiled rail systems) | 36 |
| Number of sections | 2-piece |
| Mass m (kg/m) [kg/m] | 10.5 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Product information | Please configure the product to add it to the shopping cart. |

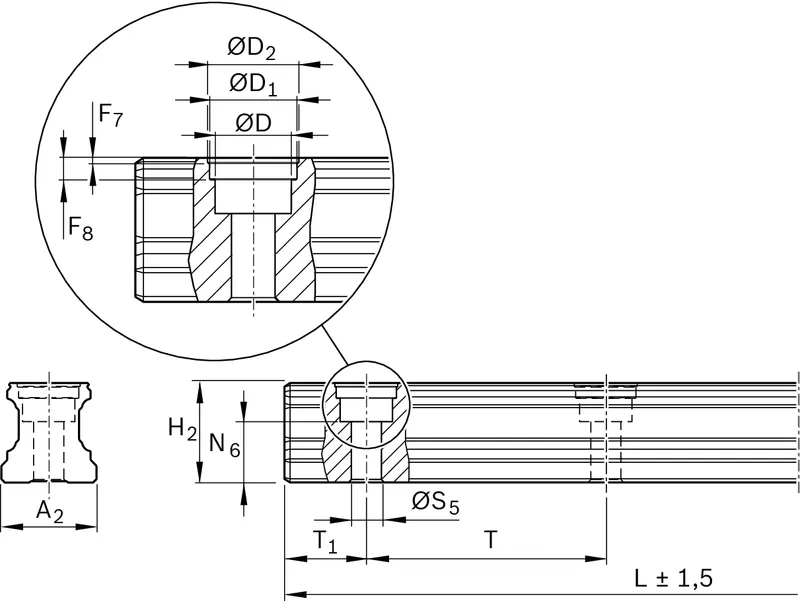

| Pitch T guide rail [mm] | 105 |
| Dimension A2 (profiled rail systems) [mm] | 45 |
| Dimension D [mm] | 20 |
| Dimension D1 [mm] | 22.55 |
| Dimension D2 [mm] | 23 |
| Dimension F7 (profiled rail systems) [mm] | 1.45 |
| Dimension F8 (profiled rail systems) [mm] | 8 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 39.85 |
| Dimension N6 (profiled rail systems) [mm] | 23.5 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 14 |
| Dimension T [mm] | 105 |
| Dimension T1 max (profiled rail systems) [mm] | 89 |
| Dimension T1 min [mm] | 18 |
| Dimension T1 s (profiled rail systems) [mm] | 50.5 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended. |
