Bosch Rexroth R160635435

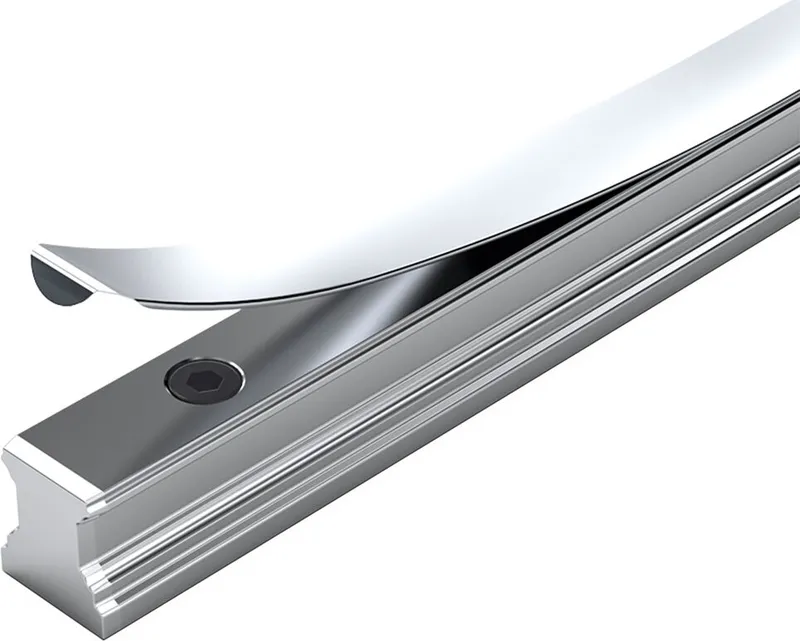

BALL GUIDE RAIL CARBON STEEL KSA-035-SNS-N-MA-SK
- MPN
- R160635435
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R160635435?
The ball guide rail is highly precise and characterized by the following product features:
Size 35
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of carbon steel CS
Fastener MA: Bolting from above
Cover SK: Steel caps (must be ordered separately)
Accuracy class standard
Number of partial sections: 5
Rail in standard version
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 35 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Carbon steel |
| Accuracy class | N - Normal |
| Guide rail mounting | For bolting from above |
| Guide rail cover | With steel caps |
| Minimum length Lmin [mm] | 112.0 |
| Number of holes nB (profiled rail systems) | 48 |
| Number of sections | 5-piece |
| Mass m (kg/m) [kg/m] | 6.8 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at negative temperatures, please consult us. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Product information | Please configure the product to add it to the shopping cart. |
| Pitch T guide rail [mm] | 80 |
| Dimension A2 (profiled rail systems) [mm] | 34 |
| Dimension D [mm] | 15 |
| Dimension D1 [mm] | 17.55 |
| Dimension D2 [mm] | 18 |
| Dimension F7 (profiled rail systems) [mm] | 0.9 |
| Dimension F8 (profiled rail systems) [mm] | 3.6 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 31.85 |
| Dimension N6 (profiled rail systems) [mm] | 20.5 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 9 |
| Dimension T [mm] | 80 |
| Dimension T1 max (profiled rail systems) [mm] | 68 |
| Dimension T1 min [mm] | 16 |
| Dimension T1 s (profiled rail systems) [mm] | 38 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended. |
R160635435: frequently asked questions
When can R160635435 be shipped?
R160635435 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R160635435 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R160635435 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R160635435, subject to availability and destination.
