Bosch Rexroth R16057C132

BALL GUIDE RAIL CARBON STEEL KSA-030-SNO-S-MA-AK

MPN
R16057C132
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

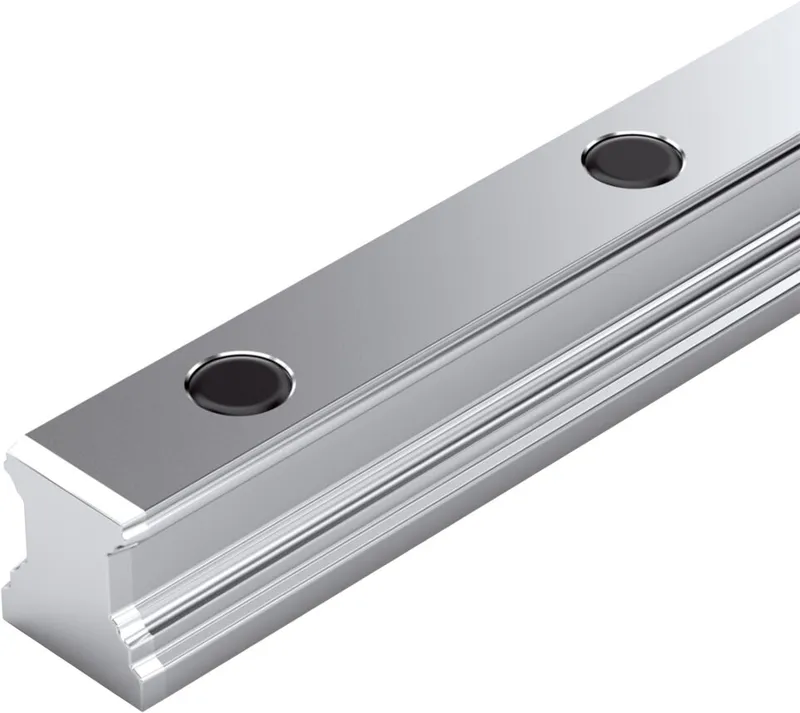

What is the Bosch Rexroth R16057C132?

The ball guide rail is highly precise and characterized by the following product features:

Size 30

Format SNO: Width = slimline, length = standard , height = without groove

Guide rail made of carbon steel CS

Fastener MA: Bolting from above

Cover AK: Plastic caps

Accuracy class super precision

Number of partial sections: 2

Rail in standard version

Maximum rigidity in all load directions

With smooth base for mounting surfaces made of mineral cast parts

For mounting from above with plastic mounting hole plugs

High torque load capacity

No extra space needed at rail ends

Specifications

Specifications

VersionBall rail system
Nominal size [mm]30
FormatSNO - guide rail without base slot
Material (profiled rail systems)Carbon steel
Accuracy classSP - Super precise
Guide rail mountingFor bolting from above
Guide rail coverPlastic caps
Max. length Lmax [mm]5836.0
Number of holes nB (profiled rail systems)48
Number of sections2-piece
Mass m (kg/m) [kg/m]5
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)100 °C admissible for short time. For operation at negative temperatures, please consult us.
Weight [kg]0
Recommended rail length (formula)L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Product informationPlease configure the product to add it to the shopping cart.
Pitch T guide rail [mm]80
Dimension A2 (profiled rail systems) [mm]28
Dimension D [mm]15
Dimension H2 without cover strip (profiled rail systems) [mm]28.35
Dimension N6 (profiled rail systems) [mm]17
Dimension N6 tolerance (profiled rail systems) [mm]±0.5
Dimension S5 (profiled rail system) [mm]9
Dimension T [mm]80
Dimension T1 max (profiled rail systems) [mm]68
Dimension T1 min [mm]12
Dimension T1 s (profiled rail systems) [mm]38
Footnote of dimension T1 s (profiled rail systems)Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended.

R16057C132: frequently asked questions

When can R16057C132 be shipped?

R16057C132 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R16057C132 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R16057C132 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R16057C132, subject to availability and destination.
