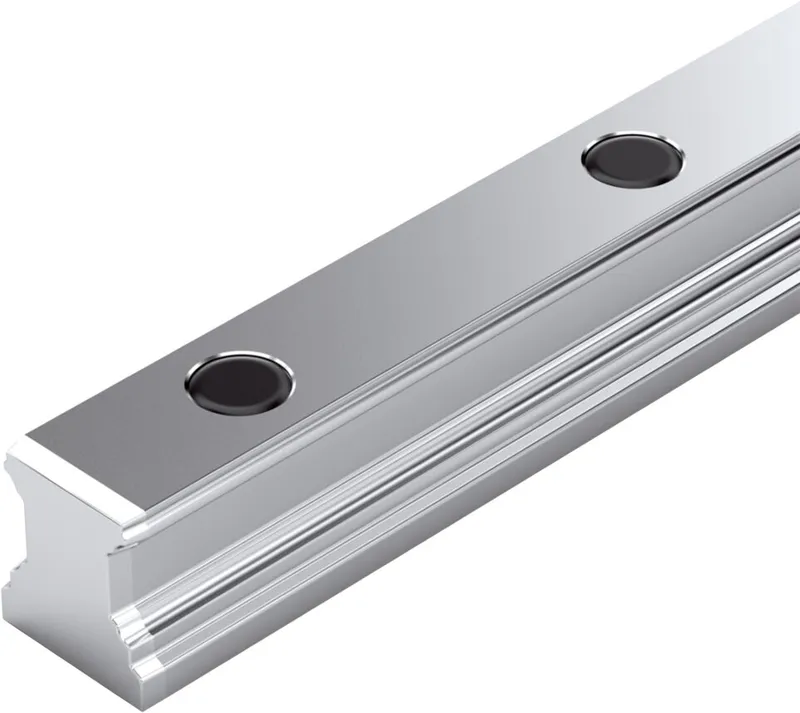

What is the Bosch Rexroth R160560132?

The ball guide rail is highly precise and characterized by the following product features:

Size 65

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of carbon steel CS

Fastener MA: Bolting from above

Cover AK: Plastic caps

Accuracy class super precision

Number of partial sections: 2

Rail in standard version

Maximum rigidity in all load directions

High torque load capacity

For mounting from above with plastic mounting hole plugs

No extra space needed at rail ends

Specifications

Specifications

VersionBall rail system
Nominal size [mm]65
FormatSNS - Standard guide rail
Material (profiled rail systems)Carbon steel
Accuracy classSP - Super precise
Guide rail mountingFor bolting from above
Guide rail coverPlastic caps
Max. length Lmax [mm]3746.0
Minimum length Lmin [mm]190.0
Number of holes nB (profiled rail systems)25
Number of sections2-piece
Mass m (kg/m) [kg/m]22.4
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)100 °C admissible for short time. For operation at negative temperatures, please consult us.
Weight [kg]0
Recommended rail length (formula)L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Product informationPlease configure the product to add it to the shopping cart.
Pitch T guide rail [mm]150
Dimension A2 (profiled rail systems) [mm]63
Dimension D [mm]26
Dimension H2 without cover strip (profiled rail systems) [mm]59.85
Dimension N6 (profiled rail systems) [mm]38.5
Dimension N6 tolerance (profiled rail systems) [mm]±0.5
Dimension S5 (profiled rail system) [mm]18
Dimension T [mm]150
Dimension T1 max (profiled rail systems) [mm]130
Dimension T1 min [mm]20
Dimension T1 s (profiled rail systems) [mm]73
Footnote of dimension T1 s (profiled rail systems)Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended.
