Bosch Rexroth R160526331
BALL GUIDE RAIL CARBON STEEL KSA-025-SNS-H-MA-AB
- MPN
- R160526331
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R160526331?
The ball guide rail is highly precise and characterized by the following product features:
Size 25
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of carbon steel CS
Fastener MA: Bolting from above
Cover AB: Cover strip
Accuracy class high
Number of partial sections: one-piece
Rail in standard version
Area of application: For harsh environments
Compact strip clamp
Cover strip made of corrosion-resistant spring steel as per DIN EN 10088 and screw-down plastic protective caps (with threaded holes on end faces)
Maximum rigidity in all load directions
High torque load capacity
A single cover for all holes
For mounting from above
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 25 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Carbon steel |
| Accuracy class | H - Highly accurate |
| Guide rail mounting | For bolting from above |
| Guide rail cover | With cover strip and protective caps |
| Max. length Lmax [mm] | 5816.0 |
| Note: Lmax | Available on request |
| Minimum length Lmin [mm] | 86.0 |
| Number of holes nB (profiled rail systems) | 64 |
| Number of sections | 1-piece |
| Mass m (kg/m) [kg/m] | 3.2 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Weight [kg] | 0 |

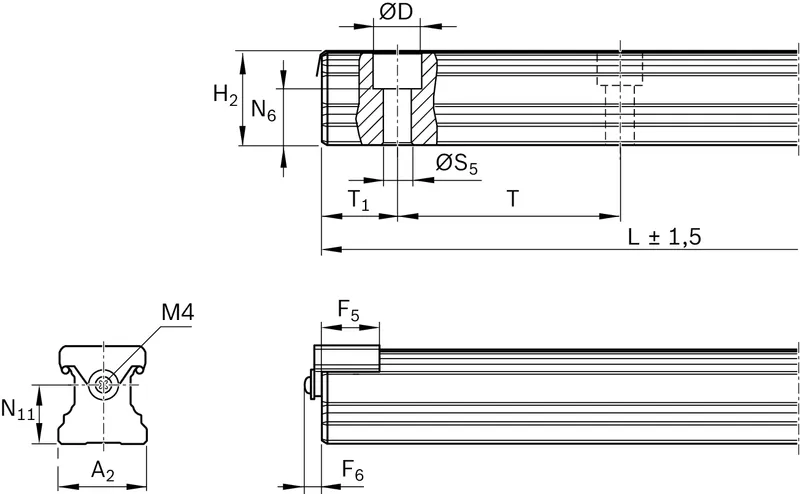

| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Product information | Please configure the product to add it to the shopping cart. |
| Pitch T guide rail [mm] | 60 |
| Dimension A2 (profiled rail systems) [mm] | 23 |
| Dimension D [mm] | 11 |
| Dimension F5 (profiled rail systems) [mm] | 15.2 |
| Dimension F6 (profiled rail systems) [mm] | 6.5 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 24.45 |
| Footnote of H2 with cover strip (profiled rail systems) | With cover strip 0.2 mm |
| Dimension N11 (profiled rail systems) [mm] | 15 |
| Dimension N6 (profiled rail systems) [mm] | 15.2 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 7 |
| Dimension T [mm] | 60 |
| Dimension T1 max (profiled rail systems) [mm] | 50 |
| Dimension T1 min [mm] | 13 |
| Dimension T1 s (profiled rail systems) [mm] | 28 |
| Footnote of dimension T1 min (profiled rail systems) | If below T<sub>1 min</sub>, no end-face thread possible. Secure the cover strip! Observe the instruction for mounting! |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended. |
| Height of guide rail H2 with cover strip [mm] | 24.45 |
