Bosch Rexroth R160510331
BALL GUIDE RAIL CARBON STEEL KSA-015-SNS-H-MA-AK
- MPN
- R160510331
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

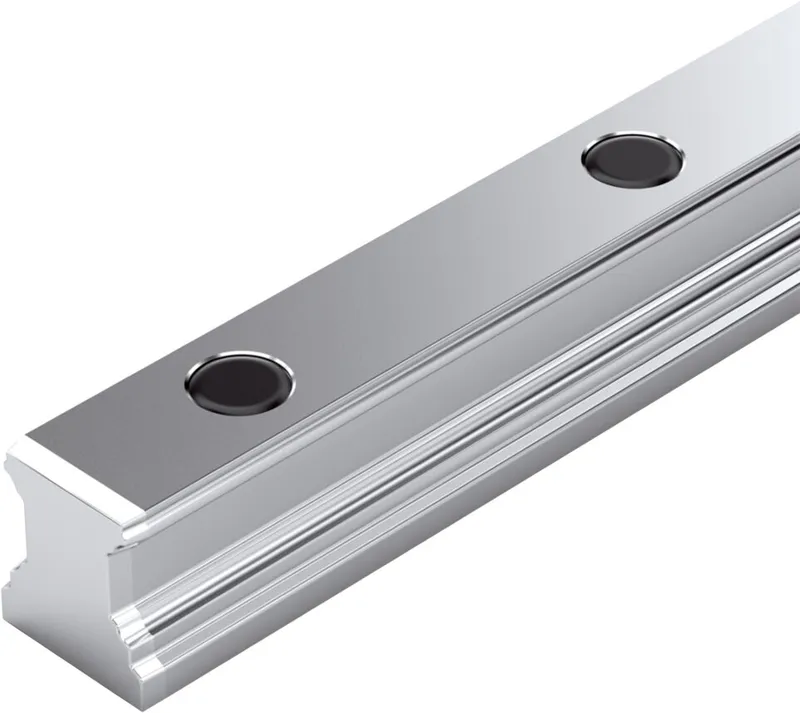

What is the Bosch Rexroth R160510331?
The ball guide rail is highly precise and characterized by the following product features:
Size 15
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of carbon steel CS
Fastener MA: Bolting from above
Cover AK: Plastic caps
Accuracy class high
Number of partial sections: one-piece
Rail in standard version
Maximum rigidity in all load directions
High torque load capacity
For mounting from above with plastic mounting hole plugs
No extra space needed at rail ends
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 15 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Carbon steel |
| Accuracy class | H - Highly accurate |
| Guide rail mounting | For bolting from above |
| Guide rail cover | Plastic caps |
| Max. length Lmax [mm] | 3836.0 |
| Minimum length Lmin [mm] | 80.0 |
| Number of holes nB (profiled rail systems) | 64 |
| Number of sections | 1-piece |
| Mass m (kg/m) [kg/m] | 1.4 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Product information | Please configure the product to add it to the shopping cart. |
| Pitch T guide rail [mm] | 60 |

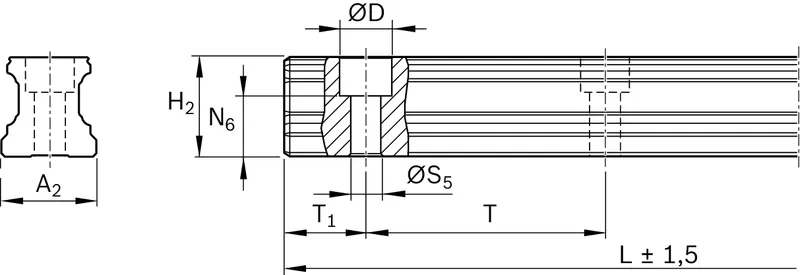

| Dimension A2 (profiled rail systems) [mm] | 15 |
| Dimension D [mm] | 7.4 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 16.2 |
| Dimension N6 (profiled rail systems) [mm] | 10.3 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 4.5 |
| Dimension T [mm] | 60 |
| Dimension T1 max (profiled rail systems) [mm] | 50 |
| Dimension T1 min [mm] | 10 |
| Dimension T1 s (profiled rail systems) [mm] | 28 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended. |
No matching specifications
R160510331: frequently asked questions
When can R160510331 be shipped?
R160510331 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R160510331 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R160510331 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R160510331, subject to availability and destination.
