Bosch Rexroth R159112030

PILLOW BLOCK SEB-F-A 20

MPN: R159112030
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

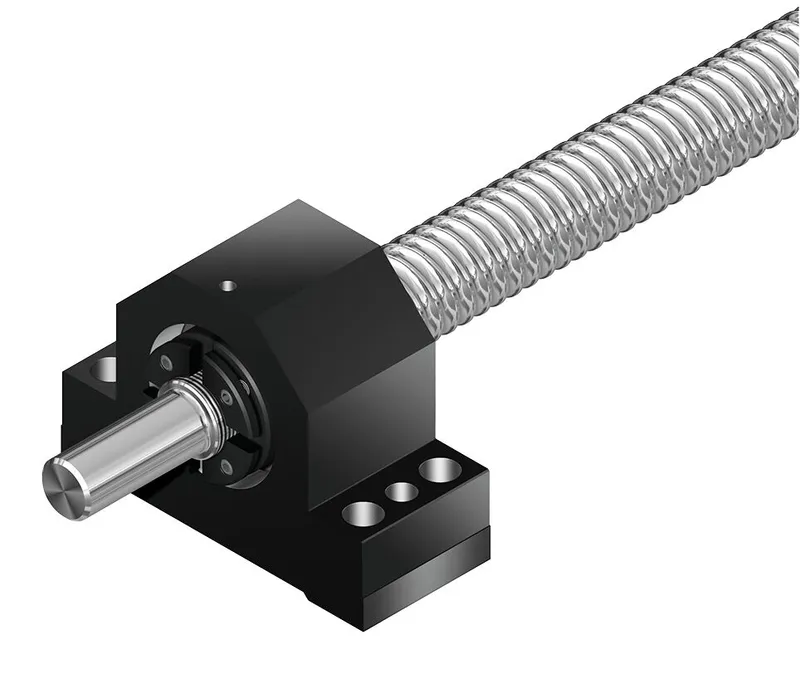

What is the Bosch Rexroth R159112030?

The pillow block unit consists of: Precision pillow block housing made of steel with reference edges on both sides, angular-contact thrust ball bearing LGN, slotted nut NMA or NMZ, threaded rings GWR

The pillow block unit consists of:

Precision pillow block housing made of steel with reference edges on both sides

Angular-contact thrust ball bearing LGN

Slotted nut NMA or NMZ

threaded rings GWR

Suitable for screw end form 51, 51A, 81, 81A, 82, 82A, 91, 91A, 92, 92A, 831, 931

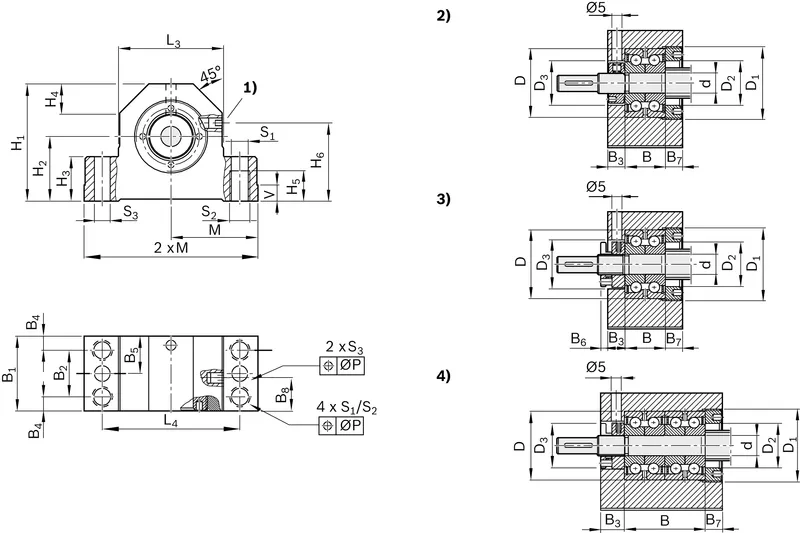

Specifications

Nominal size [mm]	32 x 5/10/20/32/64
Type	Angular-contact thrust ball bearing
Tightening torque [Nm]	18
Dynamic load capacity C [N]	26000.0
Note: dynamic load capacity C	Load capacities (axial)
Weight [kg]	1.96
Limit speed nmin [min⁻¹]	3000
Static load capacity C0 [N]	47000.0
Note: static load capacity C0	Load capacities (axial)
Rigidity of the bearing (axial) RFB [N/μm]	650
Dimension B (profiled rail systems) [mm]	28
Dimension B3 [mm]	10.5
Dimension B4 [mm]	10
Dimension D [mm]	52
Dimension d [mm]	20
Dimension D2 [mm]	36
Dimension D3 [mm]	42
Dimension H1 (profiled rail systems) [mm]	77
Dimension H3 [mm]	27
Dimension H4 [mm]	19
Dimension H5 [mm]	18
Dimension H6 [mm]	48
Dimension L3 [mm]	70
Dimension L4 [mm]	92
Dimension S3 [mm]	9.7
Dimension SW [mm]	4
Dimension V [mm]	10
