Bosch Rexroth R159063500

BEARING LAD-A-S 35 BG

MPN: R159063500
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

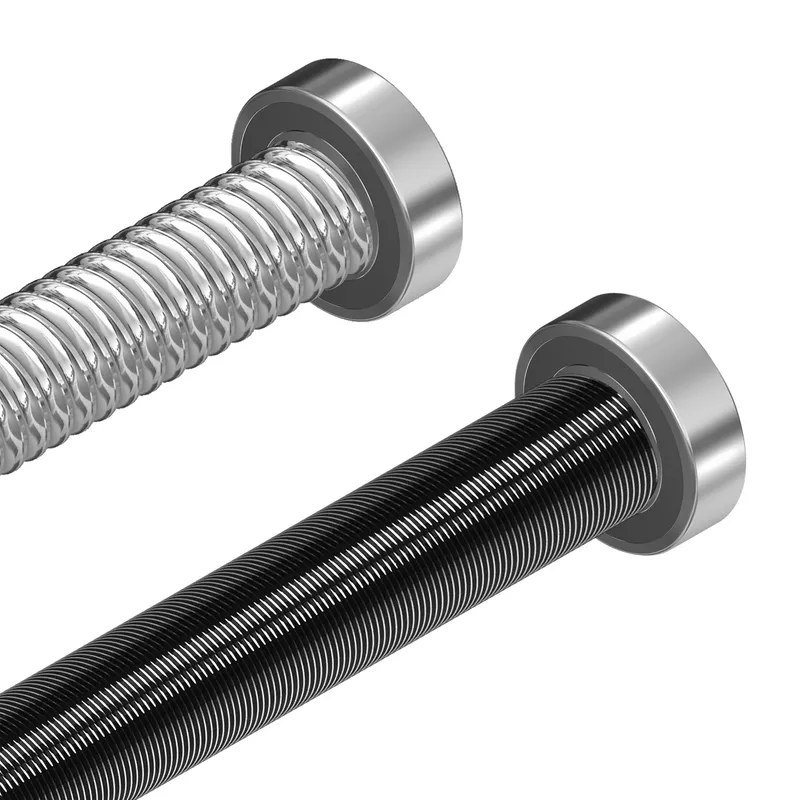

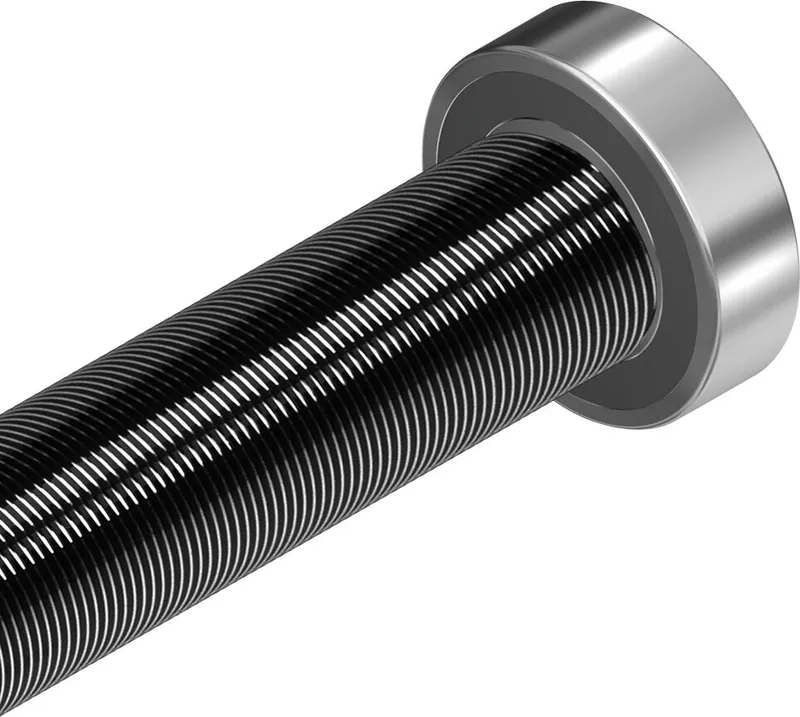

What is the Bosch Rexroth R159063500?

The floating bearing system consists of: Deep-groove ball bearing DIN◡625...◡ .2RS, retaining ring DIN◡471 (2◡pcs). Suitable for screw end type◡01, 02, 21, 31, 41, 61, 62, 71, 72

The bearing assembly consists of:

Deep-groove ball bearing DIN 625... .2RS

retaining ring DIN 471 (2 pcs)

Suitable for screw end form 212, 312, 412, 612, 622, 712, 722

Specifications

Nominal size [mm]	BASA 50 x 5/10/12/16/20/25/30/40; PLSA 48 x 5/10/20
Type	Deep-groove ball bearing according to DIN 625
Dynamic load capacity C [N]	25500.0
Outer diameter D [mm]	72.0
Weight [kg]	0.3
Static load capacity C0 [N]	13200.0

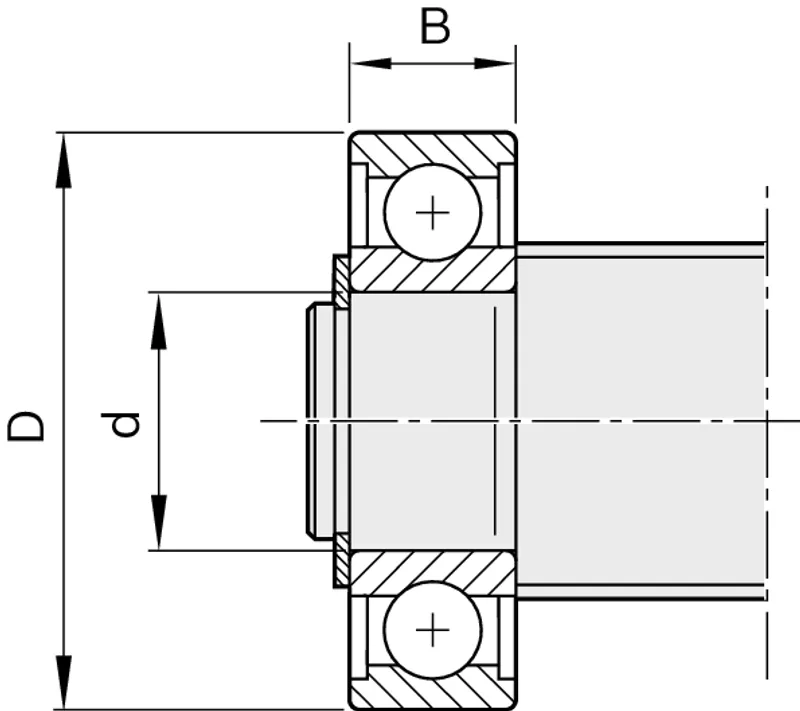

Dimension B (profiled rail systems) [mm]	17
Dimension D [mm]	72
Dimension d [mm]	35
