Bosch Rexroth R159013530

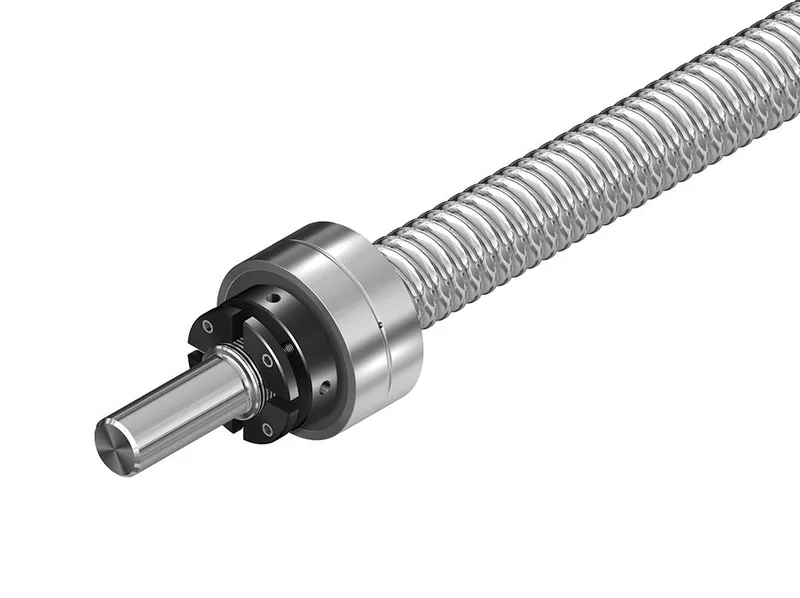

BEARING LAN-B-A 35 BG

MPN: R159013530
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R159013530?

The fixed bearing consists of: Angular-contact thrust ball bearing LGN, slotted nut NMA or NMZ. Suitable for screw end type◡51, 51A, 81, 81A, 82, 82A, 91, 91A, 92, 92A, 831, 931

The fixed bearing consists of:

Angular-contact thrust ball bearing LGN

Slotted nut NMA or NMZ

Suitable for screw end form 51, 51A, 81, 81A, 82, 82A, 91, 91A, 92, 92A, 831, 931

Specifications

Nominal size [mm]	50 x 5
Type	Angular-contact thrust ball bearing
Dynamic load capacity C [N]	41000.0
Note: dynamic load capacity C	Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Outer diameter D [mm]	72.0
Weight [kg]	0.88
Limit speed (grease) nmax	2000
Limit speed nmin [min⁻¹]	2000
Static load capacity C0 [N]	89000.0
Note: static load capacity C0	Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Rigidity against tilting Rkl [Nm/mrad]	400
Bearing frictional torque with seal MRb [Nm]	0.6
Rigidity of the bearing (axial) RFB [N/μm]	900
Dimension B (profiled rail systems) [mm]	34
Dimension D [mm]	72
Dimension d [mm]	35
Dimension d tolerance [mm]	-0.01
