Bosch Rexroth R159011700

BEARING LAN-B-Z 17 BG

MPN: R159011700
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

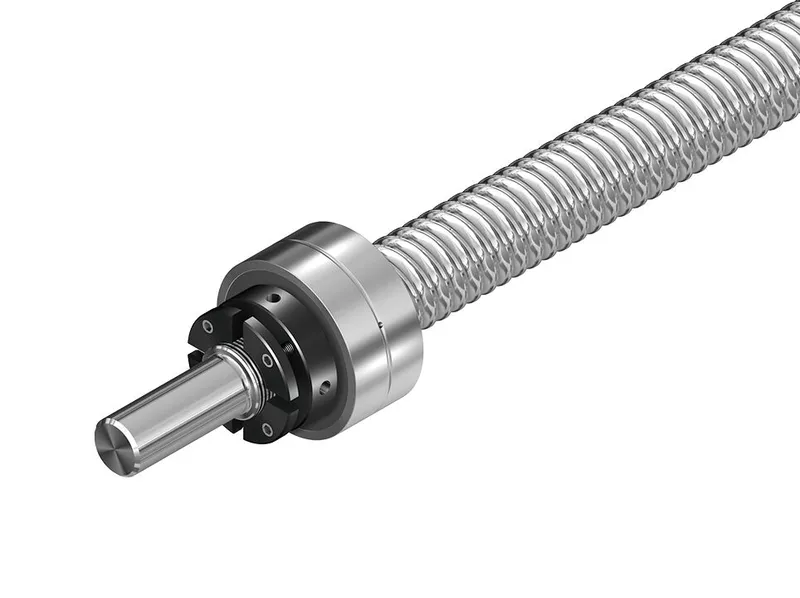

What is the Bosch Rexroth R159011700?

The fixed bearing consists of: Angular-contact thrust ball bearing LGN, slotted nut NMA or NMZ. Suitable for screw end type◡51, 51A, 81, 81A, 82, 82A, 91, 91A, 92, 92A, 831, 931

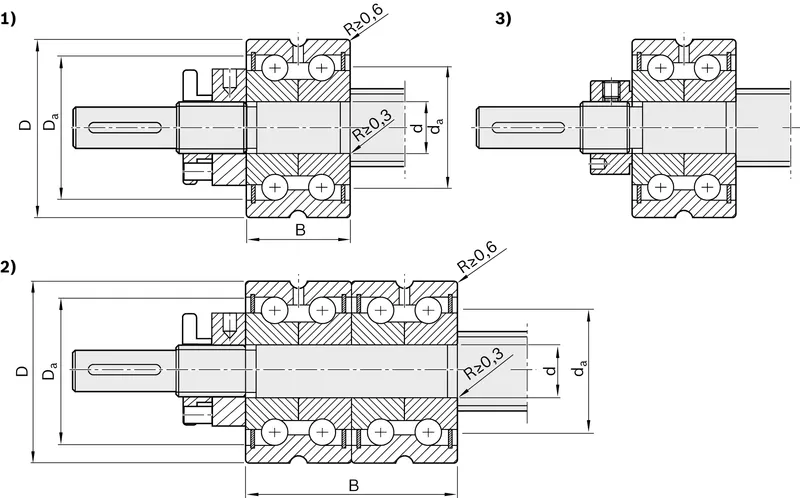

The fixed bearing consists of:

Angular-contact thrust ball bearing LGN

Slotted nut NMA or NMZ

Suitable for screw end form 51, 51A, 81, 81A, 82, 82A, 91, 91A, 92, 92A, 831, 931

Specifications

Nominal size [mm]	25 x 5/10/25
Type	Angular-contact thrust ball bearing
Dynamic load capacity C [N]	18800.0
Note: dynamic load capacity C	Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Outer diameter D [mm]	47.0
Weight [kg]	0.28
Limit speed (grease) nmax	3300
Limit speed nmin [min⁻¹]	3300
Static load capacity C0 [N]	31000.0
Note: static load capacity C0	Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Footnote mass m	R159011700
Rigidity against tilting Rkl [Nm/mrad]	80
Bearing frictional torque with seal MRb [Nm]	0.24
Rigidity of the bearing (axial) RFB [N/μm]	450
Dimension B (profiled rail systems) [mm]	25
Dimension D [mm]	47
Dimension d [mm]	17
Dimension d tolerance [mm]	-0.01
