Bosch Rexroth R156693001

FORCE SENSOR FS-75-10-1

MPN: R156693001
Category: Accessories and components for Smart Function Kit Pressing

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R156693001?

Based on strain gauge technology

For compressive forces and low traction forces

Robust and long-term stability

Corrosion-resistant stainless steel version

High reproducibility

Easy mounting directly at the EMC piston rod

Specifications

Nominal size [mm]	70
Connection	Male connector M12x1 4-pin
Outer diameter D [mm]	65.0
Operating load (of the measuring range) [%]	150
Operating temperature (min. … max.)	-30 °C ... +80 °C
Output signal [V]	0.132
Output signal (measuring range) with tolerance	0 ... +10 V
Output signal with tolerance	0,132 V ±0,01
Output signal tolerance [V]	±0.01
Bandwidth [kHz]	1
Bandwidth with tolerance	1 kHz ±0,2
Bandwidth tolerance [kHz]	±0.2
Breaking load (of the measuring range) [%]	300
Weight [kg]	2.7
Hysteresis (of the measuring range) [%]	0.1
Maximum operating temperature [°C]	+80
Minimum operating temperature [°C]	-30
Non-linearity (of the measuring range) [%]	±0.3
Protection class	IP67
Temperature drift zero point (of the measuring range per Kelvin) [%]	0.02
Temperature drift above measuring range (of the measuring range per Kelvin) [%]	0.02

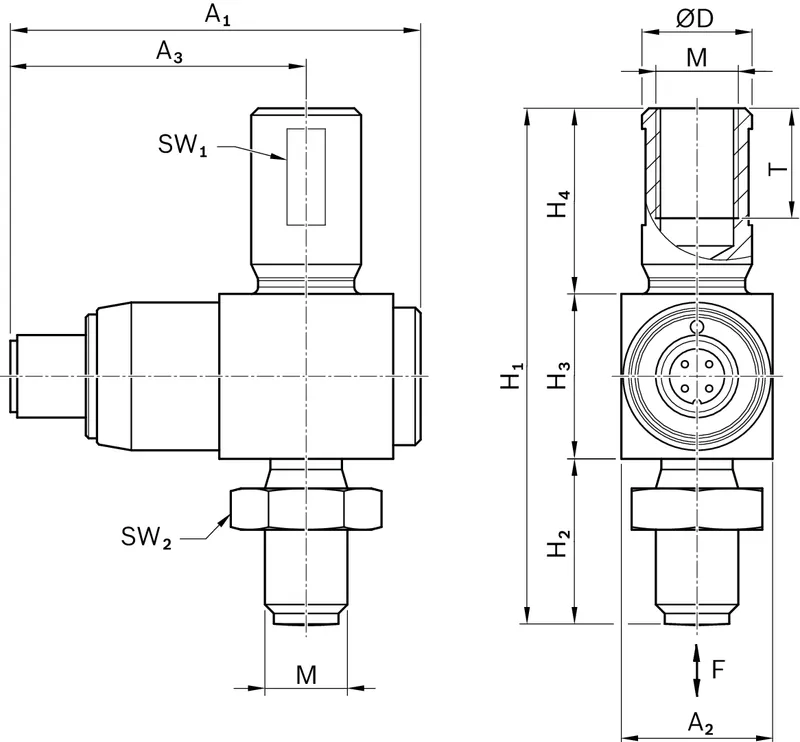

Dimension A1 (profiled rail systems) [mm]	98.5
Dimension A2 (profiled rail systems) [mm]	50
Dimension D [mm]	65
Dimension H1 (profiled rail systems) [mm]	195
Dimension H3 [mm]	50
Dimension H4 [mm]	85
Dimension SW1 [mm]	55
Dimension SW2 [mm]	65
