Bosch Rexroth R156643001

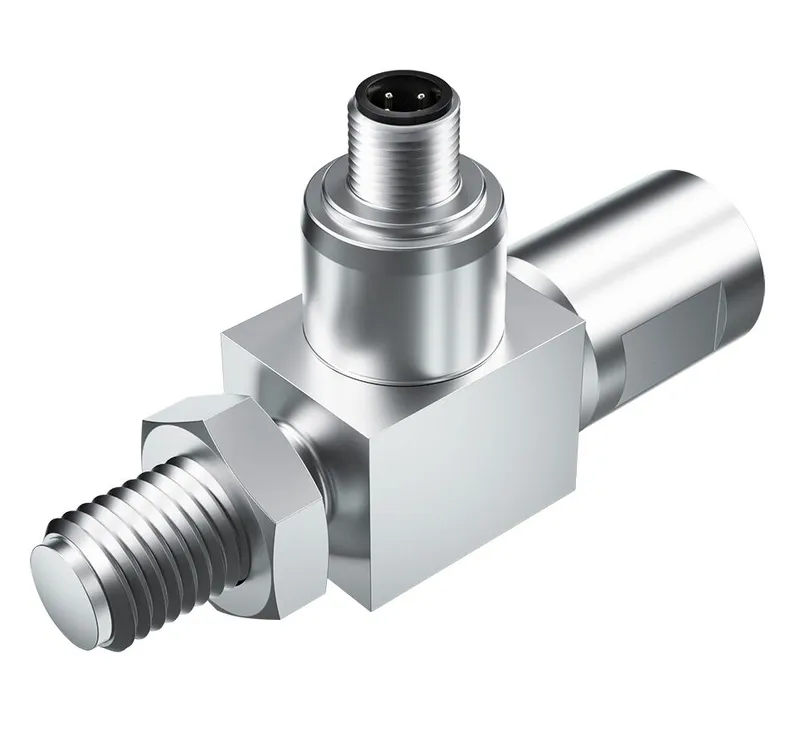

FORCE SENSOR FS-10-10-1

MPN: R156643001
Category: Accessories and components for Smart Function Kit Pressing

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R156643001?

Based on strain gauge technology

For compressive forces and low traction forces

Robust and long-term stability

Corrosion-resistant stainless steel version

High reproducibility

Easy mounting directly at the EMC piston rod

Specifications

Nominal size [mm]	7
Tightening torque [Nm]	166
Connection	Male connector M12x1 4-pin
Outer diameter D [mm]	24.5
Operating load (of the measuring range) [%]	150
Operating temperature (min. … max.)	-30 °C ... +80 °C
Output signal [V]	0.909
Output signal (measuring range) with tolerance	0+10 V
Output signal with tolerance	0,909 V ±0,03
Output signal tolerance [V]	±0.03
Bandwidth [kHz]	1
Bandwidth with tolerance	1 kHz ±0,2
Bandwidth tolerance [kHz]	±0.2
Breaking load (of the measuring range) [%]	300
Weight [kg]	0.4
Hysteresis (of the measuring range) [%]	0.1
Compensated temperature	-20 °C ... +80 °C
Maximum operating temperature [°C]	+80
Minimum operating temperature [°C]	-30
Non-linearity (of the measuring range) [%]	±0.3
Protection class	IP67
Current consumption [mA]	8
Temperature drift zero point (of the measuring range per Kelvin) [%]	0.02
Temperature drift above measuring range (of the measuring range per Kelvin) [%]	0.02
Dimension A1 (profiled rail systems) [mm]	69
Dimension A2 (profiled rail systems) [mm]	26
Dimension D [mm]	24.5
Dimension H1 (profiled rail systems) [mm]	100
Dimension H3 [mm]	33
Dimension H4 [mm]	35
Dimension SW1 [mm]	22
Dimension SW2 [mm]	24
