Bosch Rexroth R15614B025

SPHERICAL PLAIN BEARING EMC63

MPN: R15614B025
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R15614B025?

Group 6, option 05

Material: Aluminum

Counterpart to clevis bracket with load measuring pin

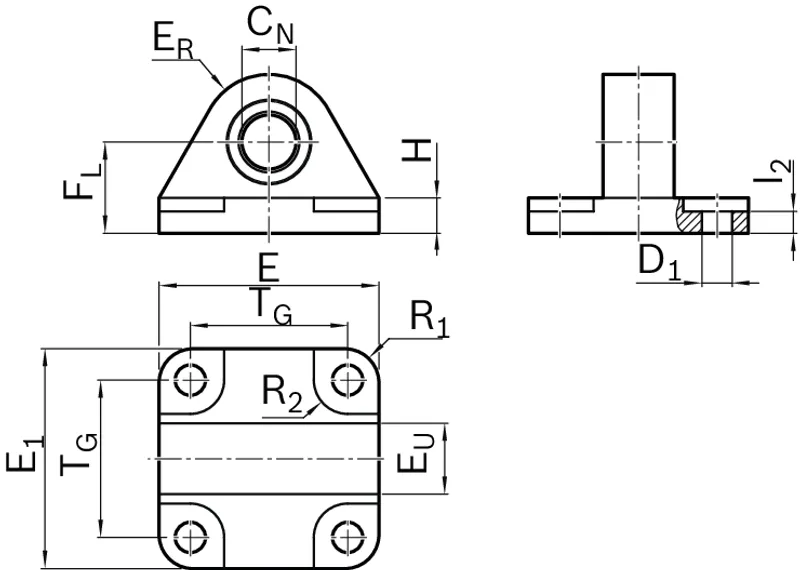

Specifications

Fastening elements for electromechanical cylinders	Swivel mount
Nominal size [mm]	63
Weight [kg]	0.28
Material of electromechanical cylinders	Aluminum
Dimension CN H7 [mm]	16
Dimension D1 H13 [mm]	9
Dimension E [mm]	80
Dimension E tolerance [mm]	±0.5
Dimension E1 [mm]	80
Dimension E1 tolerance [mm]	±0.5
Dimension ER [mm]	23
Dimension ER tolerance [mm]	±0.2
Dimension EU [mm]	21
Dimension EU tolerance [mm]	±0.2
Dimension FL [mm]	32
Dimension FL tolerance [mm]	±0.2
Dimension H [mm]	10.5
Tolerance H [mm]	±0.5
Dimension I2 [mm]	6.5
Dimension I2 tolerance [mm]	±0.5
Dimension R1 [mm]	10
Dimension R2 [mm]	10
Dimension Tg [mm]	56.5
Dimension TG [mm]	56.5
Dimension hex socket head cap screws DIN 912	M8x20 mm
Dimension hex socket head cap screw DIN 912 thread diameter	M8
Hex socket head cap screw DIN 912 screw Dimension, length [mm]	20

R15614B025: frequently asked questions

When can R15614B025 be shipped?

R15614B025 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R15614B025 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R15614B025 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R15614B025, subject to availability and destination.
