Home / Bosch Rexroth / Precision screws / Bosch Rexroth R153123700

Bosch Rexroth R153123700

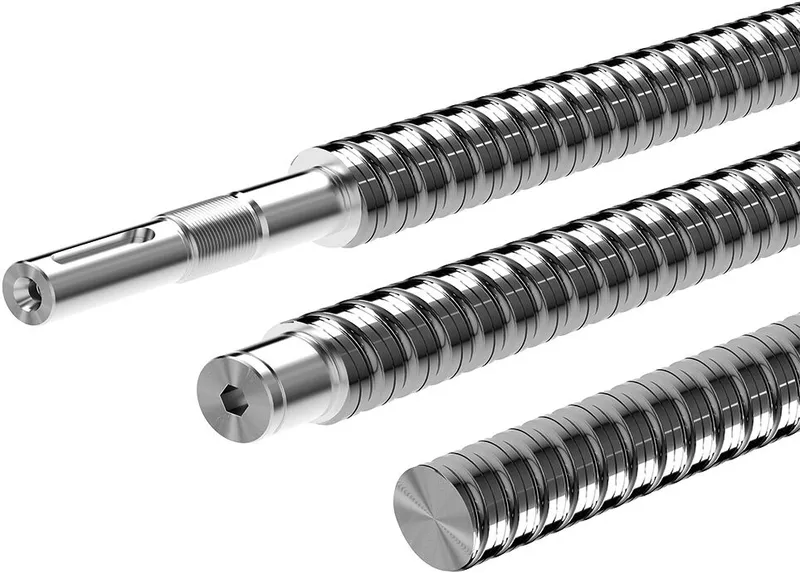

BALL SCREW 8X2,5RX1,588 (T7)

MPN: R153123700
Category: Precision screws

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R153123700?

Precision screw

Nominal diameter d0 = 8

Lead P = 2.5 (right)

Ball diameter Dw = 1.588

Tolerance grade T7 (0.052/300 mm)

Specifications

Nominal size [mm]	8 x 2,5R x 1,588
Max. length Lmax [mm]	1500.0
Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Direction of lead	Right
Mass m (kg/m) [kg/m]	0.3
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Weight [kg]	0
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15
Dimension d1 [mm]	7.5
Dimension d2 [mm]	6.3

R153123700: frequently asked questions

When can R153123700 be shipped?

R153123700 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R153123700 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R153123700 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R153123700, subject to availability and destination.
