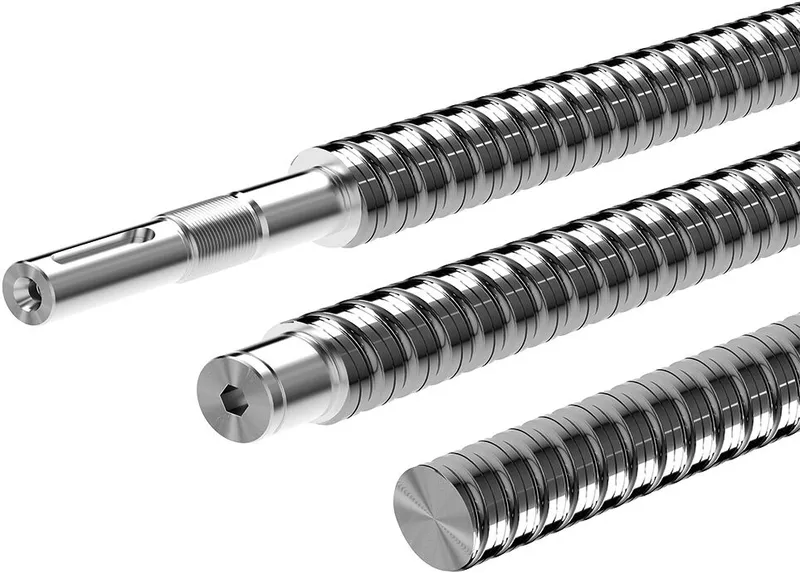

BALL SCREW 50X40RX6,5 (T5)

Name: Bosch Rexroth R151159510 – BALL SCREW 50X40RX6,5 (T5)
Brand: Bosch Rexroth
SKU: R151159510

MPN: R151159510 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Precision screws
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R151159510 be shipped?

R151159510 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R151159510 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R151159510 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R151159510, subject to availability and destination.

Precision screw

Nominal diameter d0 = 50

Lead P = 40 (right)

Ball diameter Dw = 6.5

Tolerance grade T5 (0.023/300 mm)

Specifications

Nominal size [mm]	50 x 40R x 6,5
Max. length Lmax [mm]	4500.0
Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Direction of lead	Right
Mass m (kg/m) [kg/m]	12.98
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Weight [kg]	0
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15
Dimension d1 [mm]	48
Dimension d2 [mm]	43.3
