Bosch Rexroth R151104500

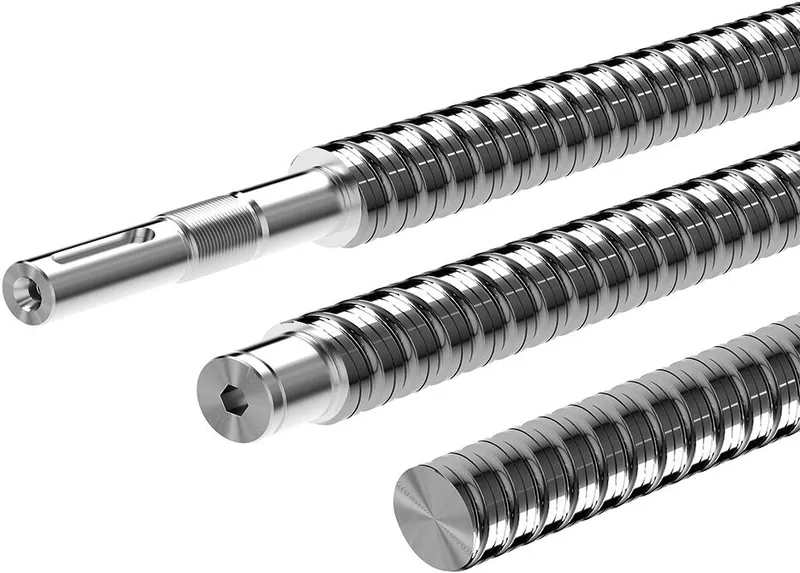

BALL SCREW 16X10RX3 (T5)

MPN: R151104500
Category: Precision screws

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R151104500?

Precision screw

Nominal diameter d0 = 16

Lead P = 10 (right)

Ball diameter Dw = 3

Tolerance grade T5 (0.023/300 mm)

Specifications

Nominal size [mm]	16 x 10R x 3
Max. length Lmax [mm]	1500.0
Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Direction of lead	Right
Mass m (kg/m) [kg/m]	1.23
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Weight [kg]	0
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15
Dimension d1 [mm]	15
Dimension d2 [mm]	12.9
