HOUSING MGD

Name: HOUSING MGD
Brand: Bosch Rexroth
SKU: R150650050

MPN: R150650050 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Accessories for ball screw assemblies
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R150650050 be shipped?

R150650050 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R150650050 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R150650050 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R150650050, subject to availability and destination.

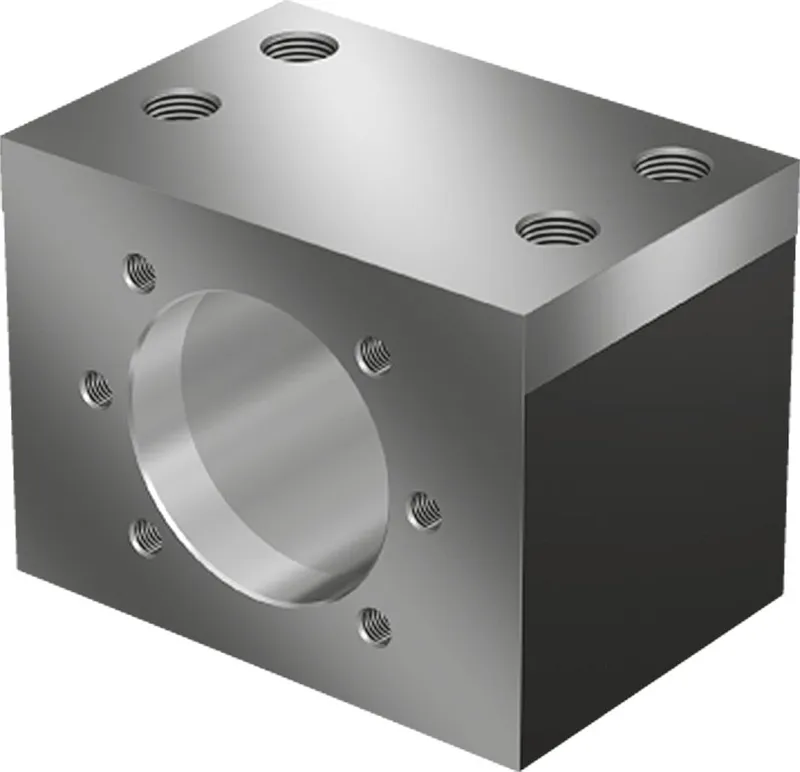

Steel nut housings MGD are designed for FEM-E-B, FDM-E-B, SEM-E-C and FED-E-B nuts, size 50x5/10/12/16/20/25/30/40 Steel nut housings MGD are designed for FEM-E-B, FDM-E-B, SEM-E-C and FED-E-B nuts

Specifications

Nominal size [mm]	50 x 10R x 6; 50 x 12R x 6; 50 x 16R x 6; 50 x 20R x 6,5; 50 x 25R x 6,5; 50 x 30R x 6,5; 50 x 40R x 6,5; 50 x 5R x 3,5
Weight [kg]	5.53

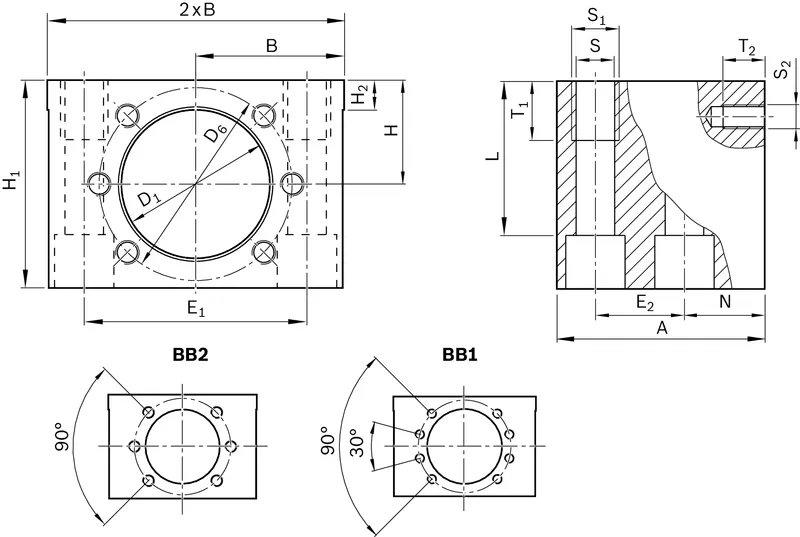

Dimension A (profiled rail systems) [mm]	95
Dimension B (profiled rail systems) [mm]	70
Dimension D1 H7 [mm]	75
Dimension D6 [mm]	93
Dimension E1 [mm]	110
Dimension E2 [mm]	45
Dimension H [mm]	48.0
Dimension H1 (profiled rail systems) [mm]	96
Dimension L [mm]	75
Dimension N [mm]	34
Dimension S [mm]	17
Dimension T1 [mm]	30
Dimension T2 [mm]	17
