NUT HOLDER MGA 20 BG(STEIGUNGS-&
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball screw assemblies |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R150610070 be shipped?
R150610070 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R150610070 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R150610070 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R150610070, subject to availability and destination.

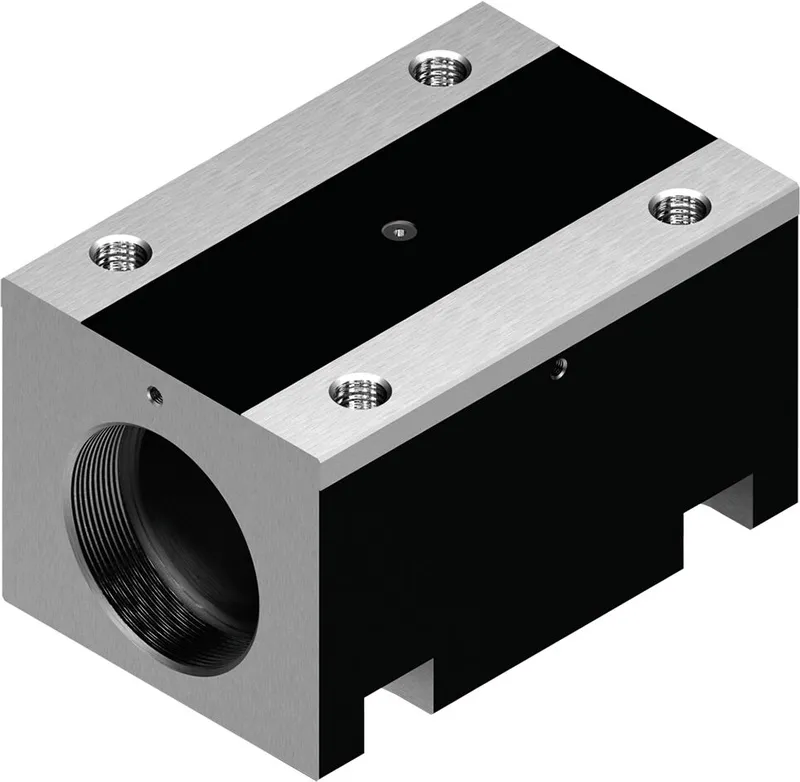

Aluminum nut housings MGA are designed for ZEM-E-S, ZEM-E-K and ZEM-E-A nuts, size 20x5/10/20 Aluminum nut housings MGA are designed for ZEM-E-S, ZEM-E-K and ZEM-E-A nuts

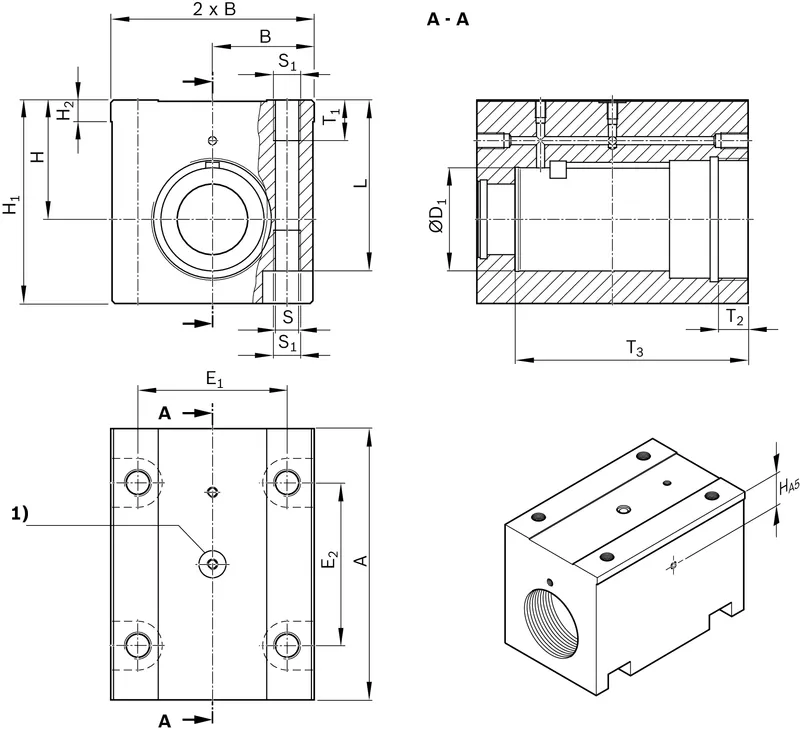

Specifications
Specifications
| Nominal size [mm] | 20 x 10R x 3; 20 x 20R x 3,5; 20 x 5R x 3 |
| Weight [kg] | 1.36 |
| Dimension A (profiled rail systems) [mm] | 100 |
| Dimension B (profiled rail systems) [mm] | 37.5 |
| Dimension E1 [mm] | 55 |
| Dimension E2 [mm] | 60 |
| Dimension H [mm] | 44.0 |
| Dimension H1 (profiled rail systems) [mm] | 75 |
| Dimension L [mm] | 63 |
| Dimension S [mm] | 8.6 |
| Dimension T1 [mm] | 15 |
| Dimension T2 [mm] | 11 |
