Bosch Rexroth R117519204
CLAMPING PIECE OBB55
- MPN
- R117519204
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth R117519204?
Bosch Rexroth CLAMPING PIECE OBB55, manufacturer part number R117519204. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Mechanical accessories for linear axes | Clamping fixtures |
| Nominal size [mm] | OBB-055 |
| Type | 2 |
| Number of bores N | 2 |
| Tightening torque of fastening screws [Nm] | 9.5 |
| Outer diameter D [mm] | 17.0 |
| Weight [kg] | 0.04 |
| Tightening torque of fixing screws footnote | at friction factor 0.125, in accordance with strength class 8.8 |

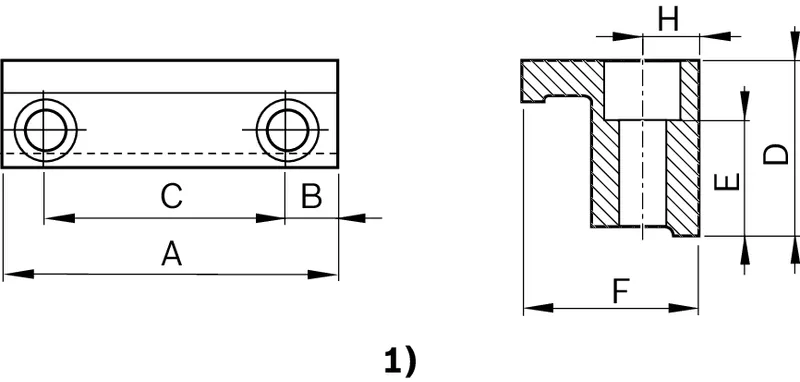

| Dimension A (profiled rail systems) [mm] | 65 |
| Dimension B (profiled rail systems) [mm] | 12.5 |
| Dimension C [mm] | 40 |
| Dimension D [mm] | 17 |
| Dimension E [mm] | 10.2 |
| Dimension F [mm] | 21 |
| Thread Dimension | M6 |
| Dimension H [mm] | 7.0 |
| Footnote Dimension for thread | Countersink ISO 4762 |
No matching specifications
R117519204: frequently asked questions
When can R117519204 be shipped?
R117519204 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R117519204 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R117519204 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R117519204, subject to availability and destination.
