LINEAR-SET LSADR1-50-SPECIAL

Name: Bosch Rexroth R109825086 – LINEAR-SET LSADR1-50-SPECIAL
Brand: Bosch Rexroth
SKU: R109825086

MPN: R109825086 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear sets with linear bushings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R109825086 be shipped?

R109825086 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R109825086 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R109825086 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R109825086, subject to availability and destination.

Linear set (aluminum)

1 torque-resistant LB

Ball guide grooves = 1

Shaft diameter d = 50

SPECIAL = shaft length processing in acc. with drawing

Without seal

Version: Standard

Lightweight precision tandem housing (aluminum)

Precision steel shaft with one ball guide groove

torque-resistant linear bushing

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

Stability against cocking loads

External seals

Relubricatable

Specifications

Shaft diameter d [mm]	50.0
Series	Torque
Type	Linear set
Dynamic load capacity C [N]	9250.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	103.0
Outer diameter D [mm]	75.0
Mass m (kg/m) [kg/m]	15.3
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0
Static load capacity C0 [N]	6470.0
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

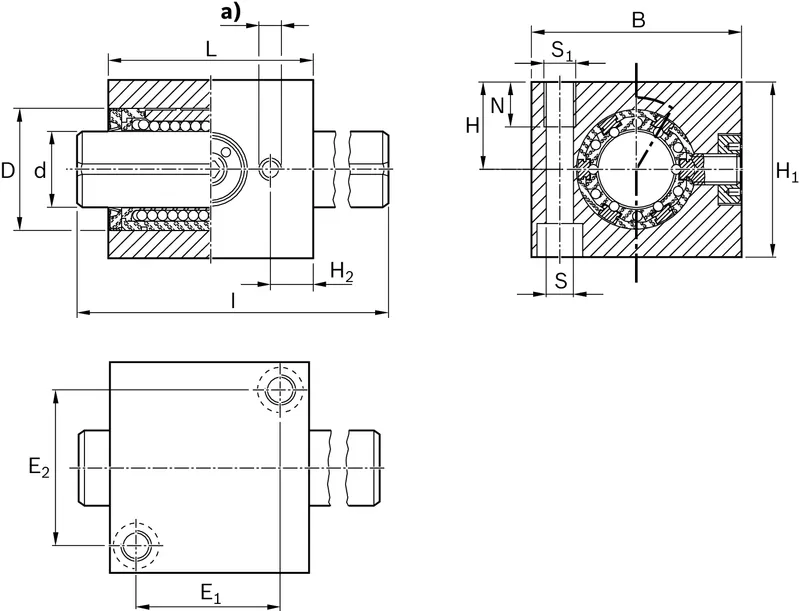

Dimension B (profiled rail systems) [mm]	130
Dimension D [mm]	75
Dimension E1 [mm]	84
Dimension E2 [mm]	100
Dimension H [mm]	50.0
Dimension H1 (profiled rail systems) [mm]	105
Dimension L [mm]	114
Dimension N [mm]	20
Dimension S [mm]	13.5
Standard length l of the shaft [mm]	600
