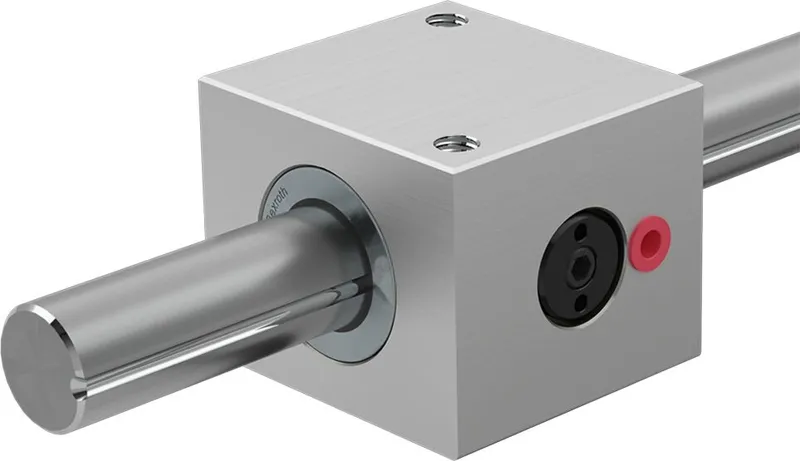

LINEAR-SET LSADR1-40-WV-K

Name: Bosch Rexroth R109824089 – LINEAR-SET LSADR1-40-WV-K
Brand: Bosch Rexroth
SKU: R109824089

MPN: R109824089 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear sets with linear bushings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R109824089 be shipped?

R109824089 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R109824089 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R109824089 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R109824089, subject to availability and destination.

Linear set (aluminum)

1 torque-resistant LB

Ball guide grooves = 1

Shaft diameter d = 40

Shaft included

L = shaft length to specification (cut)

Without seal

Version: Standard

Lightweight precision tandem housing (aluminum)

Precision steel shaft with one ball guide groove

torque-resistant linear bushing

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

Stability against cocking loads

External seals

Relubricatable

Specifications

Shaft diameter d [mm]	40.0
Series	Torque
Type	Linear set
Dynamic load capacity C [N]	6320.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	53.0
Outer diameter D [mm]	62.0
Mass m (kg/m) [kg/m]	9.8
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0
Static load capacity C0 [N]	4350.0
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Dimension B (profiled rail systems) [mm]	108
Dimension D [mm]	62
Dimension E1 [mm]	64
Dimension E2 [mm]	80
Dimension H [mm]	45.0
Dimension H1 (profiled rail systems) [mm]	90
Dimension L [mm]	92
Dimension N [mm]	20
Dimension S [mm]	13.5
