Bosch Rexroth R109754087

LINEAR-SET LSSDR2T-40-WV-1200

MPN: R109754087
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

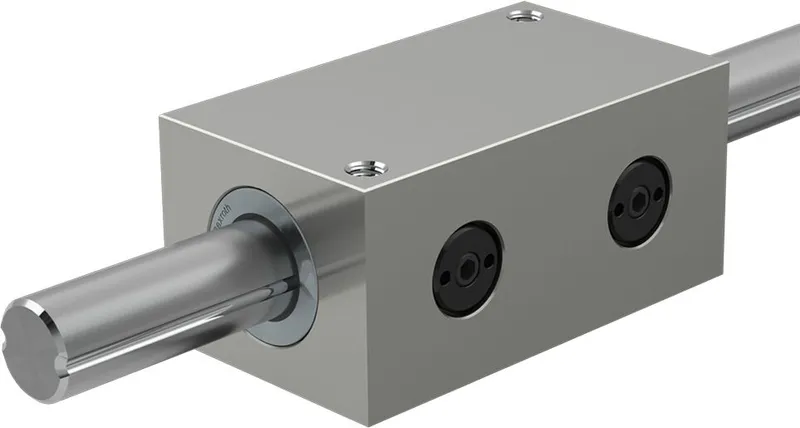

What is the Bosch Rexroth R109754087?

Linear set (steel)

2 torque-resistant LB, tandem

Ball guide grooves = 2

Shaft diameter d = 40

Shaft included

1200 = standard length as per table

Without seal

Version: Standard

Steel precision tandem housing

Precision steel shaft with two ball guide grooves

Two torque-resistant linear bushings

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

Stability against cocking loads

External seals

Specifications

Shaft diameter d [mm]	40.0
Format of linear bushings	T - Tandem
Series	Torque
Type	Linear set
Dynamic load capacity C [N]	10200.0
Note: dynamic load capacity C	Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	140.0
Outer diameter D [mm]	62.0
Mass m (kg/m) [kg/m]	9.8
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	22
Static load capacity C0 [N]	8700.0
Note: static load capacity C0	Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

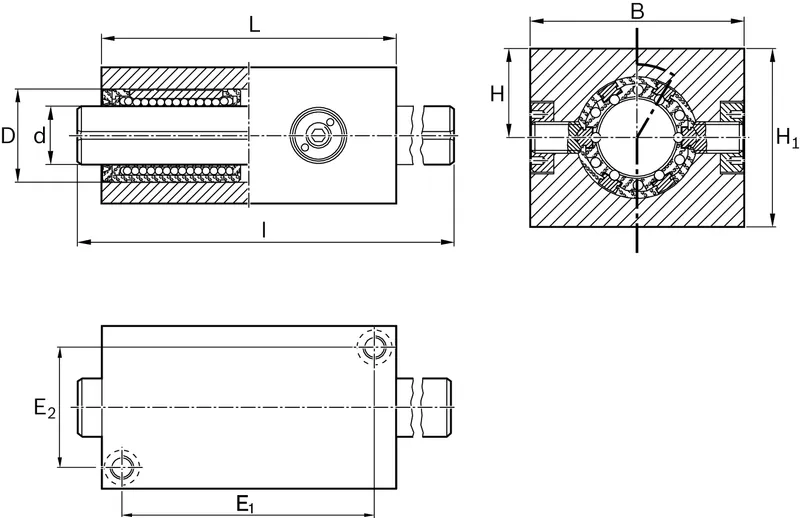

Dimension B (profiled rail systems) [mm]	108
Dimension D [mm]	62
Dimension E1 [mm]	148
Dimension E2 [mm]	80
Dimension H [mm]	45.0
Dimension H1 (profiled rail systems) [mm]	90
Dimension L [mm]	176
Standard length l of the shaft footnote [mm]	R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm
Standard length l of the shaft [mm]	600
