Bosch Rexroth R109725079

LINEAR-SET LSSDR1T-50-WV-X90-K

MPN: R109725079
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

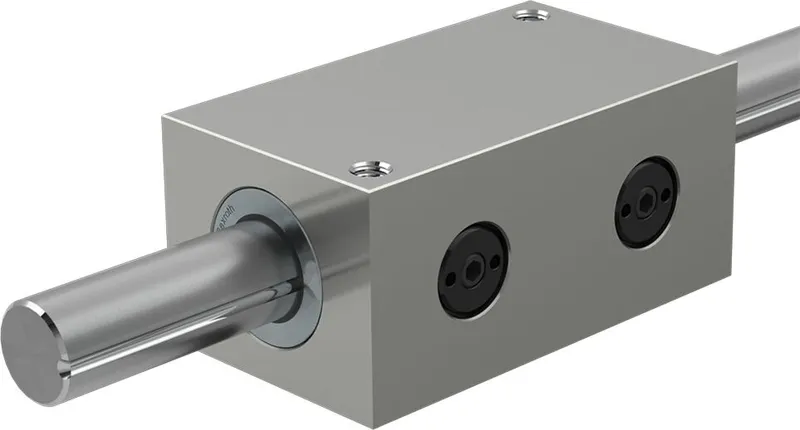

What is the Bosch Rexroth R109725079?

Linear set (steel)

2 torque-resistant LB, tandem

Ball guide grooves = 1

Shaft diameter d = 50

With X90 corrosion-resistant shaft

L = shaft length to specification (cut)

Without seal

Version: Standard

Steel precision tandem housing

Precision steel shaft with one ball guide groove

Two torque-resistant linear bushings

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

Stability against cocking loads

External seals

Specifications

Shaft diameter d [mm]	50.0
Format of linear bushings	T - Tandem
Series	Torque
Type	Linear set
Dynamic load capacity C [N]	15000.0
Note: dynamic load capacity C	Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	167.0
Outer diameter D [mm]	75.0
Mass m (kg/m) [kg/m]	15.3
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0
Static load capacity C0 [N]	12940.0
Note: static load capacity C0	Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

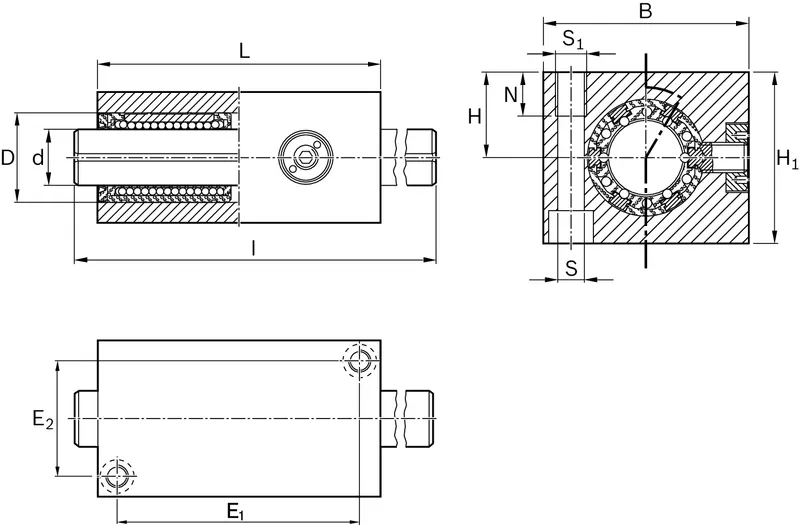

Dimension B (profiled rail systems) [mm]	130
Dimension D [mm]	75
Dimension E1 [mm]	194
Dimension E2 [mm]	100
Dimension H [mm]	50.0
Dimension H1 (profiled rail systems) [mm]	105
Dimension L [mm]	224
Dimension N [mm]	20
Dimension S [mm]	13.5

R109725079: frequently asked questions

When can R109725079 be shipped?

R109725079 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R109725079 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R109725079 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R109725079, subject to availability and destination.
