Bosch Rexroth R109722086

LINEAR-SET LSSDR1T-20-SPECIAL

MPN: R109722086
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

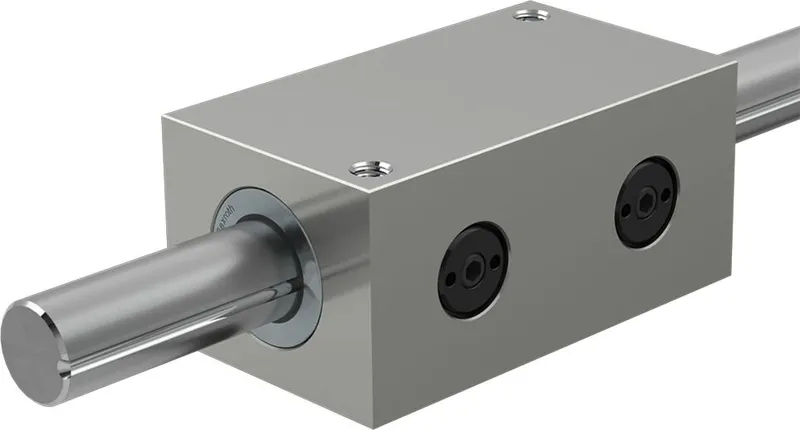

What is the Bosch Rexroth R109722086?

Linear set (steel)

2 torque-resistant LB, tandem

Ball guide grooves = 1

Shaft diameter d = 20

SPECIAL = shaft length processing in acc. with drawing

Without seal

Version: Standard

Steel precision tandem housing

Precision steel shaft with one ball guide groove

Two torque-resistant linear bushings

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

Stability against cocking loads

External seals

Specifications

Shaft diameter d [mm]	20.0
Format of linear bushings	T - Tandem
Series	Torque
Type	Linear set
Dynamic load capacity C [N]	2500.0
Note: dynamic load capacity C	Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	12.0
Outer diameter D [mm]	32.0
Mass m (kg/m) [kg/m]	2.45
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0
Static load capacity C0 [N]	2100.0
Note: static load capacity C0	Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

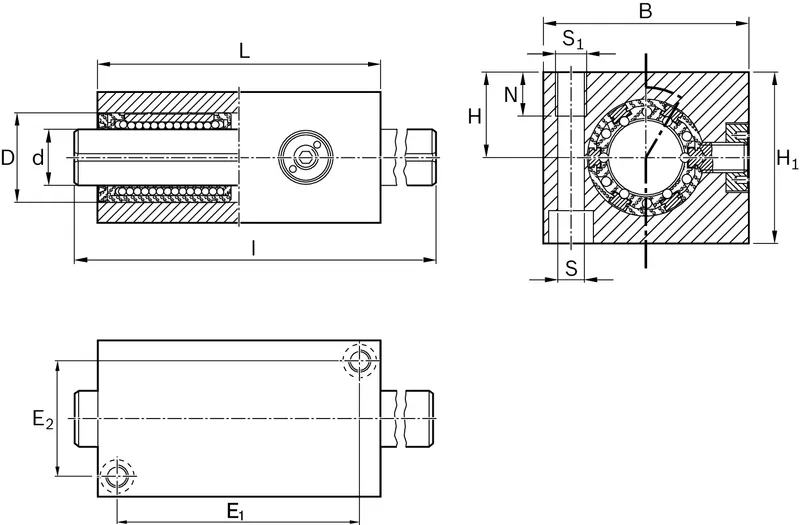

Dimension B (profiled rail systems) [mm]	60
Dimension D [mm]	32
Dimension E1 [mm]	88
Dimension E2 [mm]	44
Dimension H [mm]	25.0
Dimension H1 (profiled rail systems) [mm]	50
Dimension L [mm]	104
Dimension N [mm]	12
Dimension S [mm]	6.6
Standard length l of the shaft [mm]	500
