Bosch Rexroth R109653087

LINEAR-SET LSSDR2-30-WV-1200

MPN: R109653087
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R109653087?

Linear set (steel)

1 torque-resistant LB

Ball guide grooves = 2

Shaft diameter d = 30

Shaft included

1200 = standard length as per table

Without seal

Version: Standard

Steel precision housing

Precision steel shaft with two ball guide grooves

torque-resistant linear bushing

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

Stability against cocking loads

External seals

Specifications

Shaft diameter d [mm]	30.0
Series	Torque
Type	Linear set
Dynamic load capacity C [N]	3680.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	37.0
Outer diameter D [mm]	47.0
Mass m (kg/m) [kg/m]	5.5
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0.1
Static load capacity C0 [N]	2790.0
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

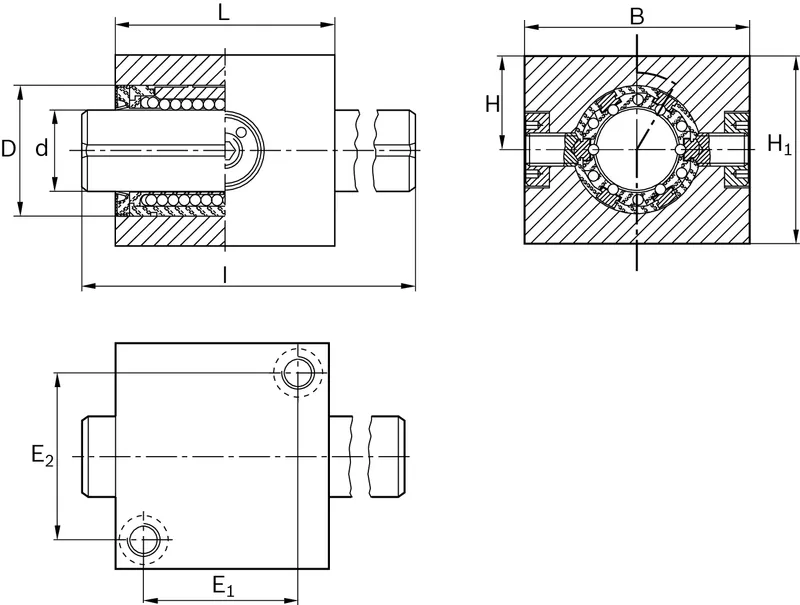

Dimension B (profiled rail systems) [mm]	84
Dimension D [mm]	47
Dimension E1 [mm]	58
Dimension E2 [mm]	62
Dimension H [mm]	35.0
Dimension H1 (profiled rail systems) [mm]	70
Dimension L [mm]	80
Standard length l of the shaft footnote [mm]	R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm
Standard length l of the shaft [mm]	600
