Bosch Rexroth R109625079

LINEAR-SET LSSDR1-50-WV-X90-K

MPN: R109625079
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

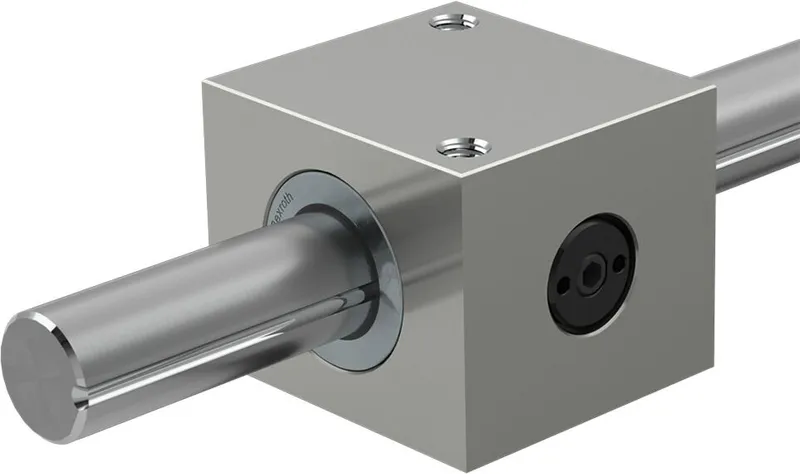

What is the Bosch Rexroth R109625079?

Linear set (steel)

1 torque-resistant LB

Ball guide grooves = 1

Shaft diameter d = 50

With X90 corrosion-resistant shaft

L = shaft length to specification (cut)

Without seal

Version: Standard

Steel precision housing

Precision steel shaft with one ball guide groove

torque-resistant linear bushing

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

Stability against cocking loads

External seals

Specifications

Shaft diameter d [mm]	50.0
Series	Torque
Type	Linear set
Dynamic load capacity C [N]	9250.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	103.0
Outer diameter D [mm]	75.0
Mass m (kg/m) [kg/m]	15.3
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0
Static load capacity C0 [N]	6470.0
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

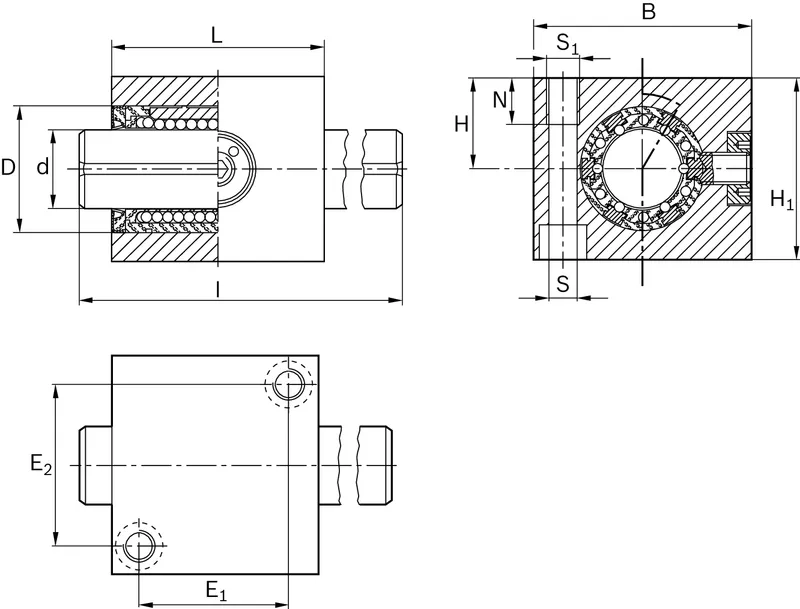

Dimension B (profiled rail systems) [mm]	130
Dimension D [mm]	75
Dimension E1 [mm]	84
Dimension E2 [mm]	100
Dimension H [mm]	50.0
Dimension H1 (profiled rail systems) [mm]	105
Dimension L [mm]	114
Dimension N [mm]	20
Dimension S [mm]	13.5
