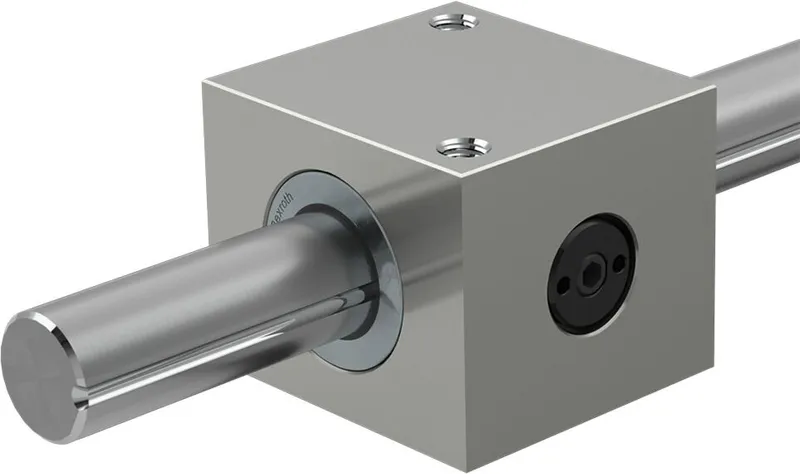

What is the Bosch Rexroth R109621687?

Linear set (steel)

1 torque-resistant LB

Ball guide grooves = 1

Shaft diameter d = 16

Shaft included

1200 = standard length as per table

Without seal

Version: Standard

Steel precision housing

Precision steel shaft with one ball guide groove

torque-resistant linear bushing

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

Stability against cocking loads

External seals

Specifications

Shaft diameter d [mm]	16.0
Series	Torque
Type	Linear set
Dynamic load capacity C [N]	780.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	3.3
Outer diameter D [mm]	26.0
Mass m (kg/m) [kg/m]	1.57
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0.1
Static load capacity C0 [N]	530.0
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

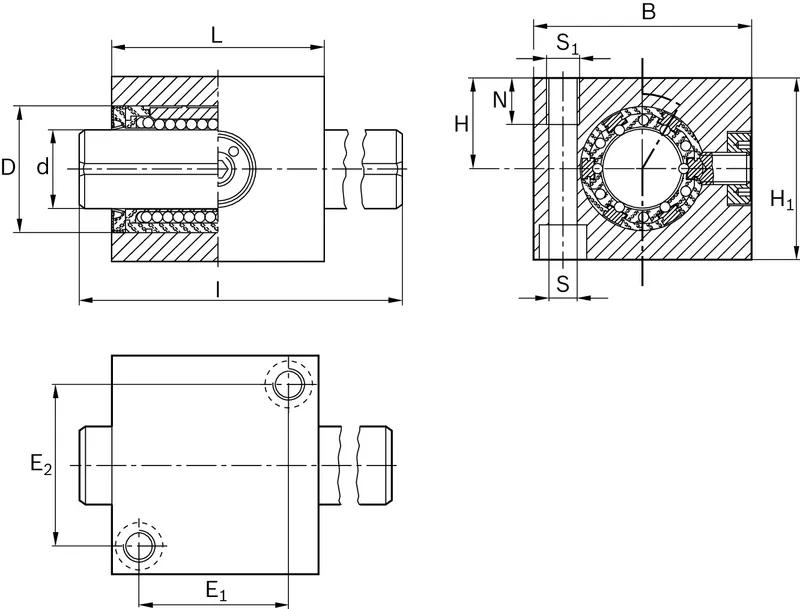

Dimension B (profiled rail systems) [mm]	50
Dimension D [mm]	26
Dimension E1 [mm]	30
Dimension E2 [mm]	36
Dimension H [mm]	22.0
Dimension H1 (profiled rail systems) [mm]	42
Dimension L [mm]	44
Dimension N [mm]	12
Dimension S [mm]	5.3
Standard length l of the shaft footnote [mm]	R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm
Standard length l of the shaft [mm]	400
