Bosch Rexroth R108162540

LINEAR-SET LSGF-A-25-DD

MPN: R108162540
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

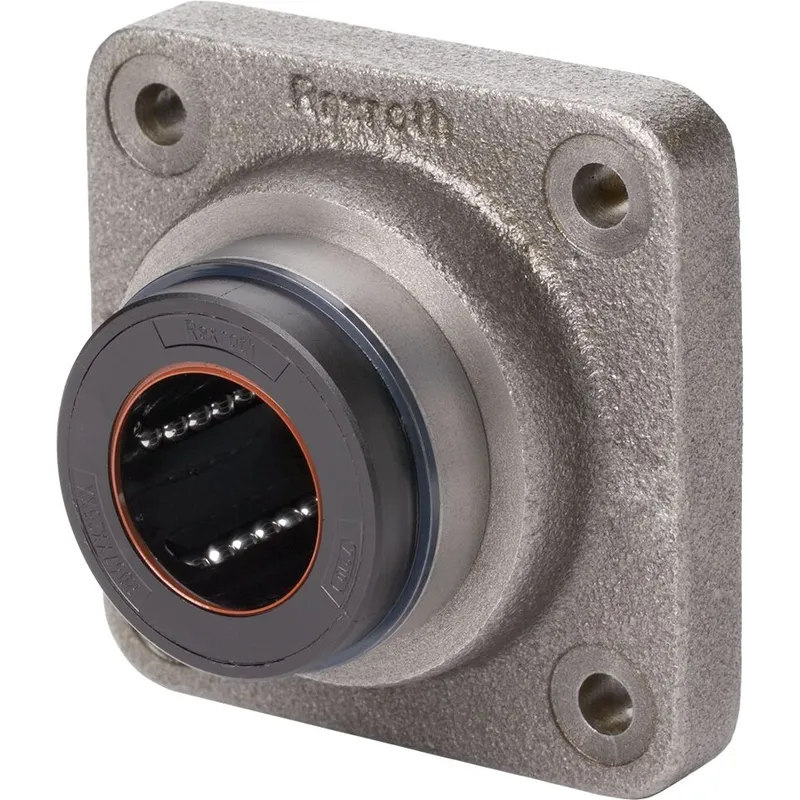

What is the Bosch Rexroth R108162540?

Linear set (steel)

Flange

With super LB A

Shaft diameter d = 25

With two seals

Version: Standard

Precision flanged housing (lamellar graphite cast iron)

super linear bushing A with self-alignment feature

Two retaining rings with two additional spacer rings (steel) for shaft diameters 12 to 40

Integrated wiper seals

Radial clearance not adjustable

No initial lubrication

Specifications

Shaft diameter d [mm]	25.0
Format of linear bushings	F - Flange
Series	Super A (with self-alignment feature)
Type	Linear set
Dynamic load capacity C [N]	3950.0
Note: dynamic load capacity C	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Note: maximum permissible speed vmax	Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10<sup>5</sup> m to 100 • 10<sup>5</sup> m without failure.
Outer diameter D [mm]	40.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0.6
Static load capacity C0 [N]	2180.0
Note: static load capacity C0	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	4.5

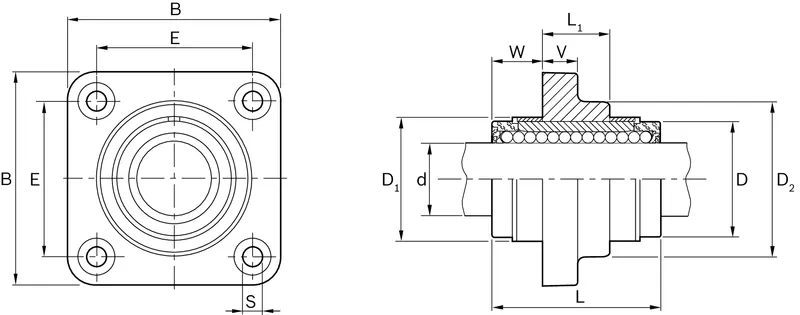

Dimension B (profiled rail systems) [mm]	74
Dimension D [mm]	40
Dimension D1 [mm]	43
Dimension D1 tolerance	+0.8
Dimension D2 [mm]	54
Dimension E [mm]	54
Dimension L [mm]	58
Dimension L1 [mm]	23
Dimension S H13 [mm]	6.6
Dimension V [mm]	12
Dimension W [mm]	17.5
