Bosch Rexroth R106726000

LINEAR-SET LSGO-M-60-DD

MPN: R106726000
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

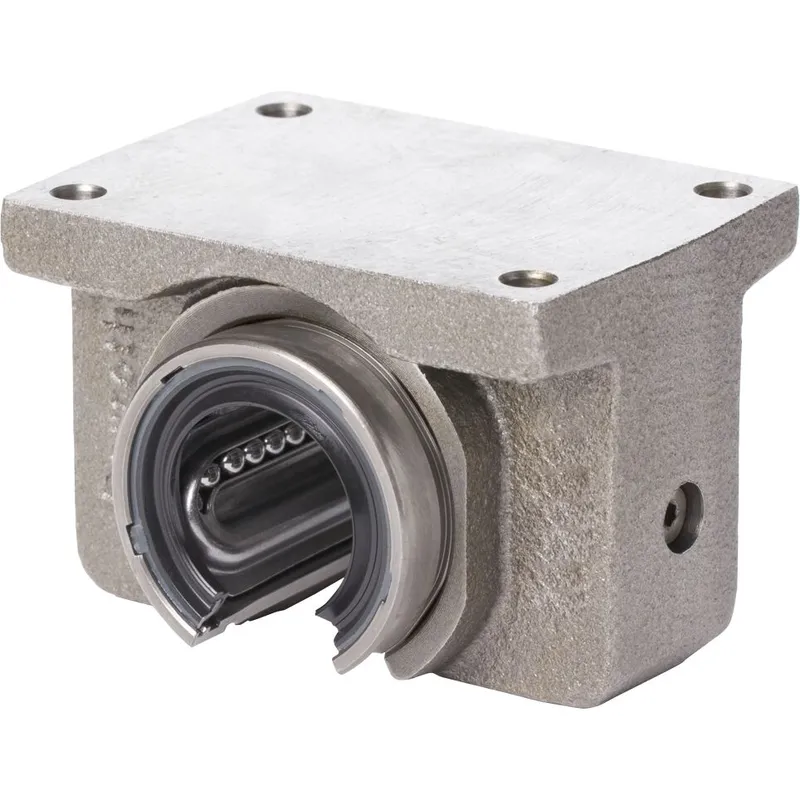

What is the Bosch Rexroth R106726000?

Linear set (steel)

Open

With standard LB (metal)

Shaft diameter d = 60

With two seals

Version: Standard

Precision housing (lamellar graphite cast iron/steel)

Standard linear bushing with wiper seals

Secured with locating screw

Specifications

Shaft diameter d [mm]	60.0
Format of linear bushings	O - Open
Series	Standard (metal)
Type	Linear set
Dynamic load capacity C [N]	11800.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading.
Maximum acceleration rate amax [m/s²]	50.0
Maximum permissible linear speed vmax [m/s]	2.0
Outer diameter D [mm]	90.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	for standard linear bushings without wiper seals
Weight [kg]	5.92
Static load capacity C0 [N]	9780.0
Note: static load capacity C0	The load capacities apply for the main direction of loading.
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	48

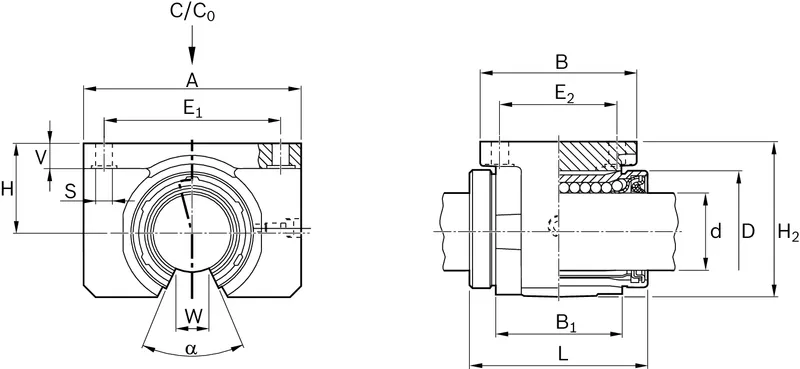

Dimension A (profiled rail systems) [mm]	160
Dimension B (profiled rail systems) [mm]	92
Dimension B1 [mm]	95
Dimension D [mm]	90
Dimension E1 [mm]	132
Dimension E2 [mm]	65
Dimension H [mm]	60.0
Dimension L [mm]	125
Dimension S [mm]	11
Dimension V [mm]	15
Dimension W [mm]	27.2
Angle α [°]	54
