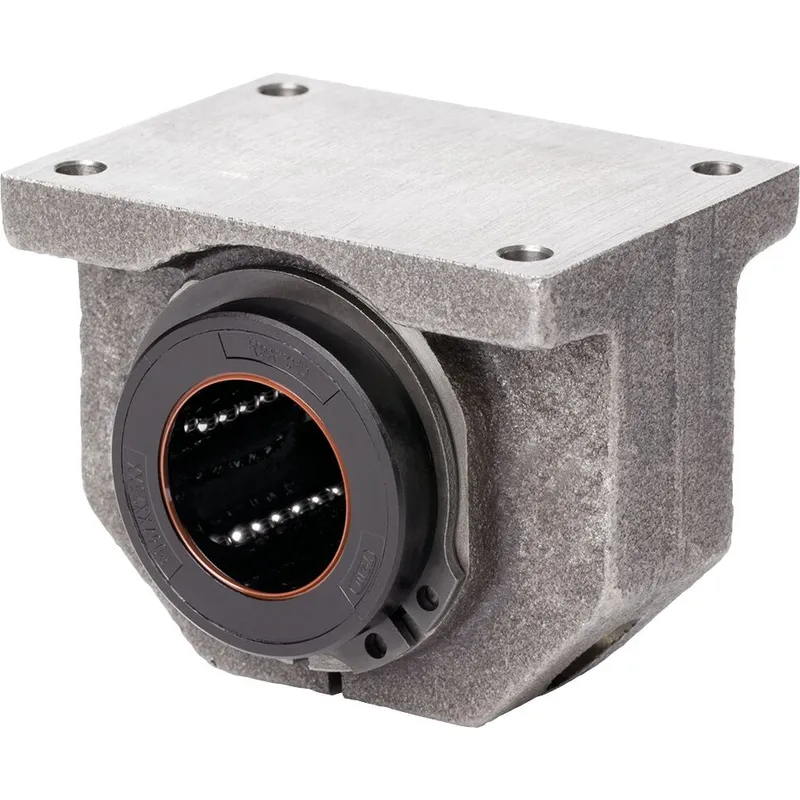

Bosch Rexroth R106684040

LINEAR-SET LSGE-B-40-DD

MPN: R106684040
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R106684040?

Linear set (steel)

Adjustable

With super LB B

Shaft diameter d = 40

With two seals

Version: Standard

Precision housing (lamellar graphite cast iron/steel)

super linear bushing B without self-alignment feature

Integrated wiper seals

Specifications

Shaft diameter d [mm]	40.0
Format of linear bushings	E - Adjustable
Series	Super B (no self-alignment feature)
Type	Linear set
Dynamic load capacity C [N]	10070.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 12 and 16: f = 0.82, f<sub>0</sub> = 0.86, Ø d 20 to 50: f = 0.82, f<sub>0</sub> = 0.78
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Note: maximum permissible speed vmax	Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10<sup>5</sup> m to 100 • 10<sup>5</sup> m without failure.
Radial clearance	Clamped to h5 shaft (lower limit) and set to zero-clearance before delivery
Outer diameter D [mm]	62.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	2.31
Static load capacity C0 [N]	5570.0
Note: static load capacity C0	The load capacities apply for the main direction of loading. If the direction of loading is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 12 and 16: f = 0.82, f<sub>0</sub> = 0.86, Ø d 20 to 50: f = 0.82, f<sub>0</sub> = 0.78
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	8

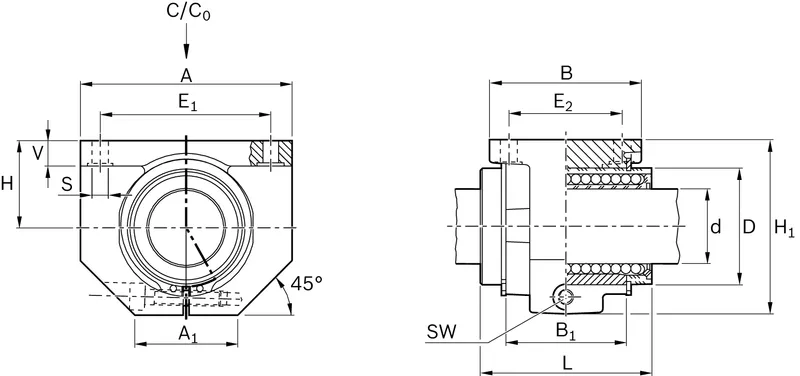

Dimension A (profiled rail systems) [mm]	108
Dimension A1 (profiled rail systems) [mm]	51
Dimension B (profiled rail systems) [mm]	78
Dimension B1 [mm]	56
Dimension D [mm]	62
Dimension E1 [mm]	86
Dimension E2 [mm]	58
Dimension H [mm]	45.0
Dimension H1 (profiled rail systems) [mm]	90
Dimension L [mm]	80
Dimension S [mm]	9
Dimension SW [mm]	6
Dimension V [mm]	12
Footnote Dimension H1	Tolerance ISO 8062-3 - DCTG 9.
