Bosch Rexroth R106512000

LINEAR-SET LSG-M-20

MPN: R106512000
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

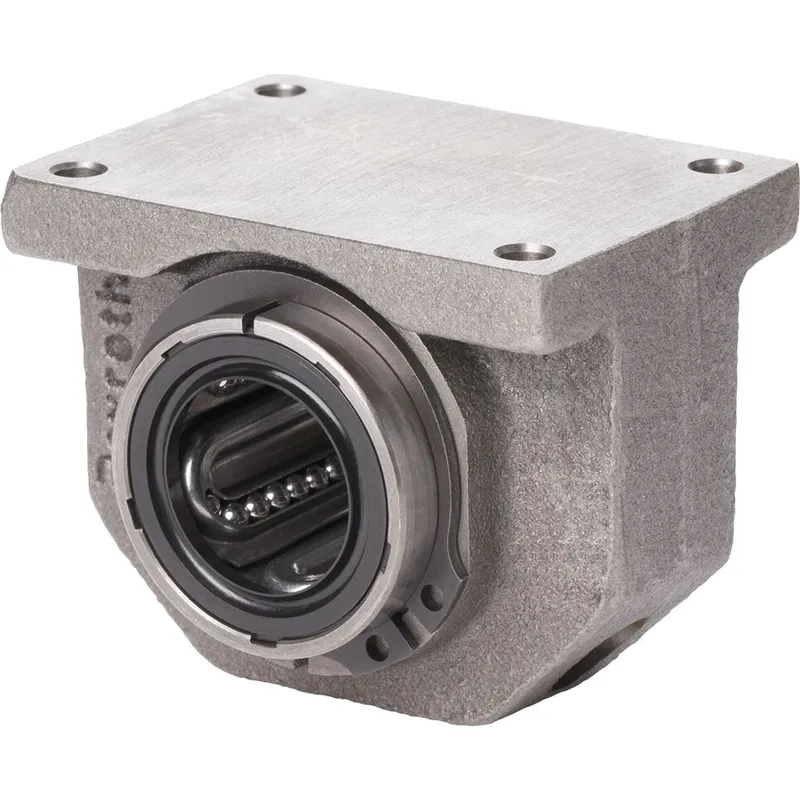

What is the Bosch Rexroth R106512000?

Linear set (steel)

Closed

With standard LB (metal)

Shaft diameter d = 20

Without seal

Version: Standard

Precision housing (lamellar graphite cast iron/steel)

Standard linear bushing with wiper seals

Two retaining rings

Specifications

Shaft diameter d [mm]	20.0
Format of linear bushings	– Closed
Series	Standard (metal)
Type	Linear set
Dynamic load capacity C [N]	1170.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	100.0
Maximum permissible linear speed vmax [m/s]	2.5
Outer diameter D [mm]	32.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +100 °C
Note: permissible ambient temperature (min. ... max.)	for standard linear bushings without wiper seals
Weight [kg]	0.46
Static load capacity C0 [N]	860.0
Note: static load capacity C0	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Footnote shaft radial clearance h6	“Determined from working bore diameter and shaft tolerance statistics. When factoring in the outer diameter of the linear bushings and the housing bore, an h6 shaft produces similar radial clearance values as specified in the “h6/H7" column under "Radial clearance" for the R0610 standard linear bushing.”
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	12

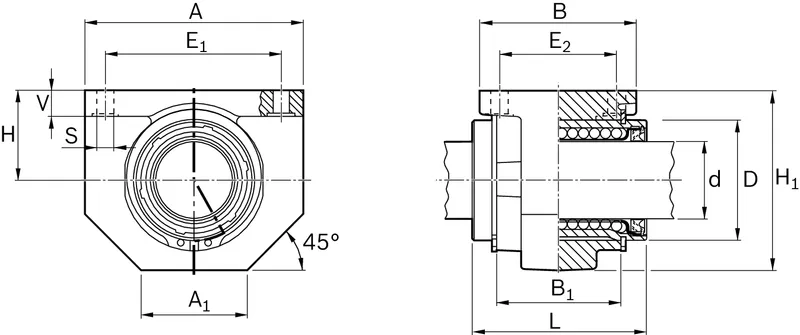

Dimension A (profiled rail systems) [mm]	60
Dimension A1 (profiled rail systems) [mm]	28
Dimension B (profiled rail systems) [mm]	42
Dimension B1 [mm]	28
Dimension D [mm]	32
Dimension E1 [mm]	45
Dimension E2 [mm]	32
Dimension H [mm]	25.0
Dimension H1 (profiled rail systems) [mm]	50
Dimension L [mm]	45
Dimension S [mm]	4.5
Dimension V [mm]	8
Footnote Dimension H1	Tolerance ISO 8062-3 - DCTG 9.
