LINEAR-SET LSK-30-DD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear sets with linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R106023000 be shipped?
R106023000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R106023000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R106023000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R106023000, subject to availability and destination.

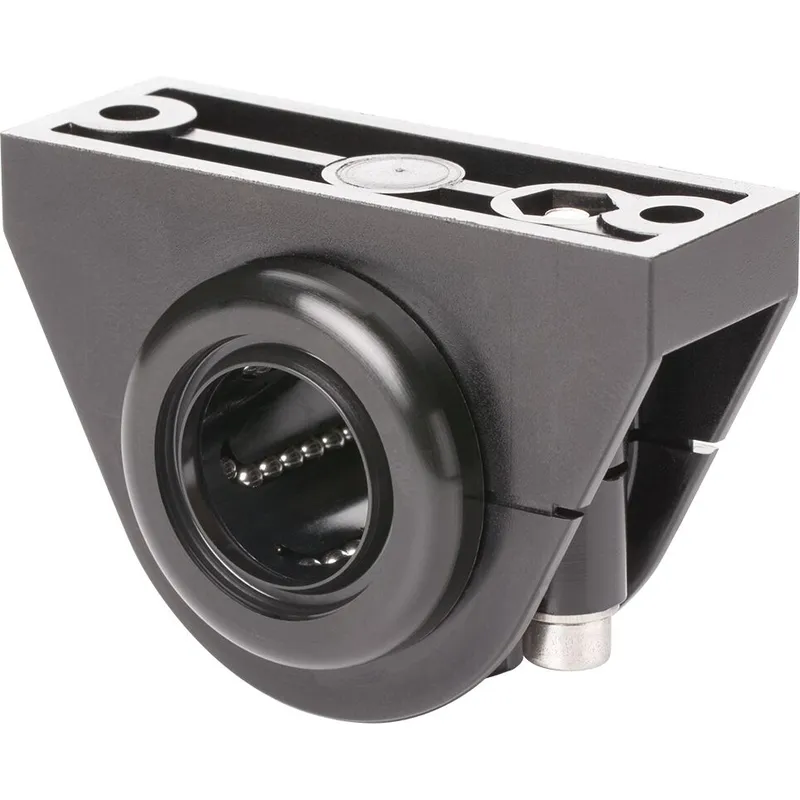

Linear set (plastic)
Plastic, with segmental LB
Shaft diameter d = 30
With two seals
Version: Standard
pillow block housing made of reinforced PA
segmental linear bushing
Lightweight, stable and affordable
Two interchangeable wiper seals
Radial clearance adjustable
Specifications
Specifications
| Shaft diameter d [mm] | 30.0 |
| Version | Standard |
| Format of linear bushings | – Closed |
| Type | Linear set |
| Dynamic load capacity C [N] | 2390.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Radial clearance | Clamped to h5 shaft (lower limit) and set to zero-clearance before delivery |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0.24 |
| Static load capacity C0 [N] | 1960.0 |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Footnote breakaway force | Frictional drags generated by linear bushings with seals on both ends when not under radial load. This depends on speed and lubrication. |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force [N] | 9 |

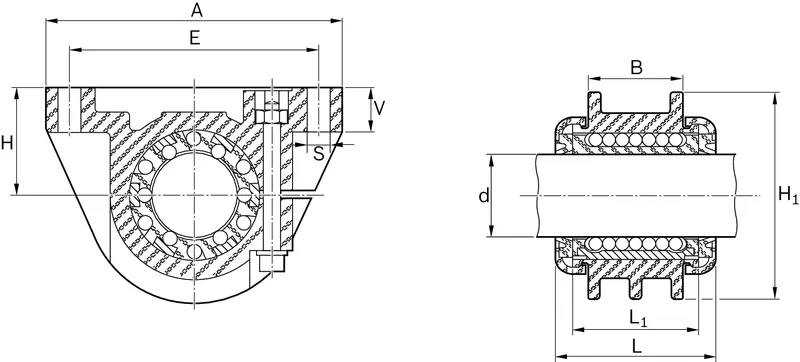

| Dimension A (profiled rail systems) [mm] | 97 |
| Dimension B (profiled rail systems) [mm] | 36 |
| Dimension E [mm] | 80 |
| Dimension H [mm] | 35.0 |
| Dimension H1 (profiled rail systems) [mm] | 70 |
| Dimension L [mm] | 55 |
| Dimension L1 [mm] | 44 |
| Dimension S [mm] | 6.6 |
| Dimension V [mm] | 13 |
More Bosch Rexroth parts
Available on requestLINEAR-SET LSK-20-DD
Available on requestLINEAR-SET LSK-20-DD-NR
Available on requestLINEAR-SET LSK-25-DD
Available on requestLINEAR-SET LSK-25-DD-NR
Available on requestLINEAR-SET LSK-30-DD-NR
Available on requestLINEAR-SET LSK-40-DD
Available on requestLINEAR-SET LSK-40-DD-NR

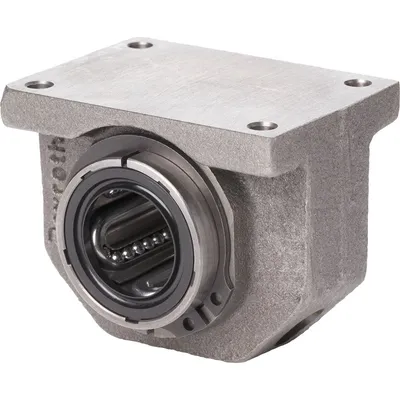

Available on requestLINEAR-SET LSG-M-12
