Bosch Rexroth R106021200

LINEAR-SET LSK-12-DD

MPN: R106021200
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

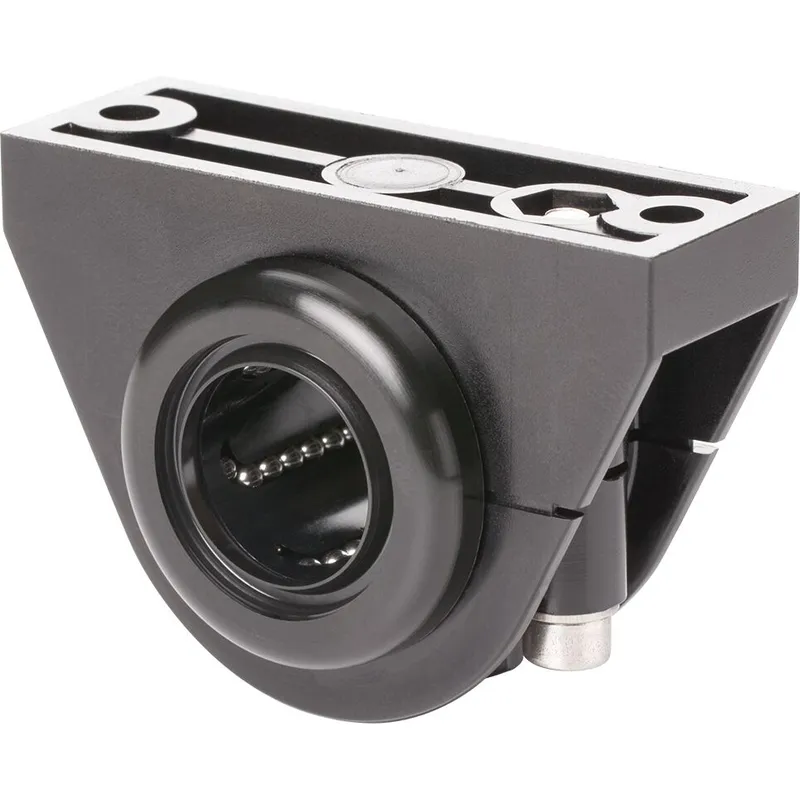

What is the Bosch Rexroth R106021200?

Linear set (plastic)

Plastic, with segmental LB

Shaft diameter d = 12

With two seals

Version: Standard

pillow block housing made of reinforced PA

segmental linear bushing

Lightweight, stable and affordable

Two interchangeable wiper seals

Radial clearance adjustable

Specifications

Shaft diameter d [mm]	12.0
Version	Standard
Format of linear bushings	– Closed
Type	Linear set
Dynamic load capacity C [N]	480.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Radial clearance	Clamped to h5 shaft (lower limit) and set to zero-clearance before delivery
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0.04
Static load capacity C0 [N]	420.0
Note: static load capacity C0	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Footnote breakaway force	Frictional drags generated by linear bushings with seals on both ends when not under radial load. This depends on speed and lubrication.
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	3

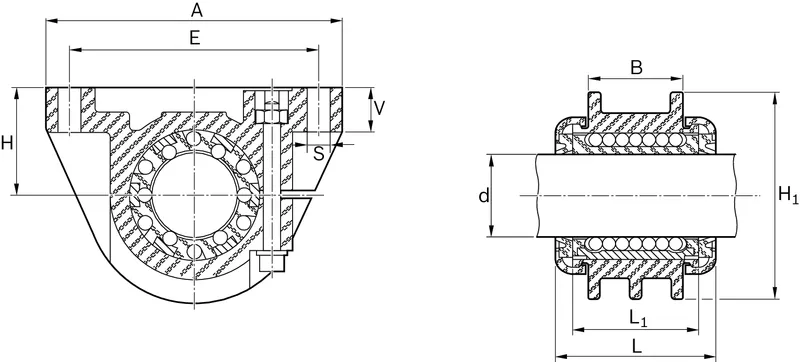

Dimension A (profiled rail systems) [mm]	55
Dimension B (profiled rail systems) [mm]	20
Dimension E [mm]	43
Dimension H [mm]	18.0
Dimension H1 (profiled rail systems) [mm]	35
Dimension L [mm]	31
Dimension L1 [mm]	24
Dimension S [mm]	4.4
Dimension V [mm]	8
