Bosch Rexroth R105705000

SHAFT SUPPORT BLOCK WBA-50-FO

MPN: R105705000
Category: Shaft support blocks

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R105705000?

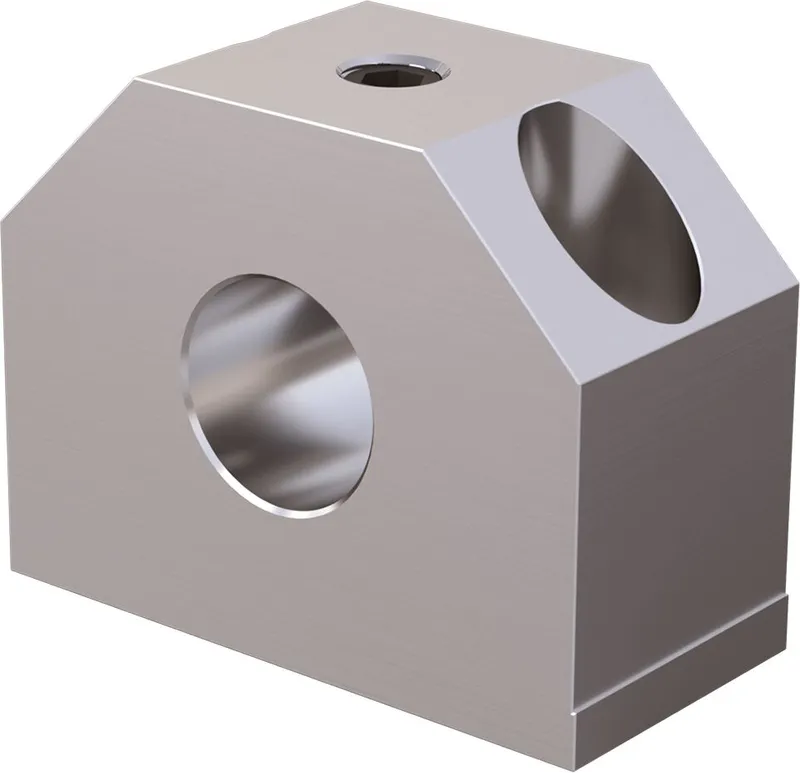

Shaft support block (aluminum)

Shaft diameter d = 50

Top securing

Material: Aluminum

Rigid shaft mounting due to extra-wide design

Topside clamping for better accessibility

Better security thanks to clamping screw with larger thread diameter

Thread for fastening from below

Drill hole for fastening from above

Reference edge for easy alignment

For easy installing and quick aligning

Precise design with reference edge

More affordable than in-house designs

Specifications

Accessories for linear bushings	Shaft support blocks
Shaft diameter d [mm]	50.0
Type	Shaft support block
Tightening torque [Nm]	120
Housing material	Aluminum = A
Weight [kg]	1.46

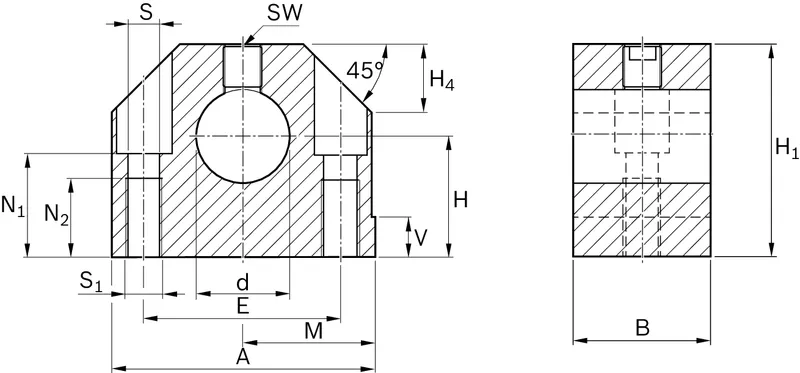

Dimension A (profiled rail systems) [mm]	132
Dimension B (profiled rail systems) [mm]	58
Dimension d H8 [mm]	50
Dimension E [mm]	100
Dimension H [mm]	60.0
Dimension H1 (profiled rail systems) [mm]	105
Dimension H4 [mm]	37
Dimension M [mm]	66
Dimension N1 (profiled rail systems) [mm]	49
Dimension N2 (profiled rail systems) [mm]	42
Dimension S [mm]	17.5
Dimension SW [mm]	8
Dimension V [mm]	12
