Bosch Rexroth R105054000

SHAFT SUPPORT RAIL WU40-AF-600

MPN: R105054000
Category: Precision steel shafts with shaft support rails

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

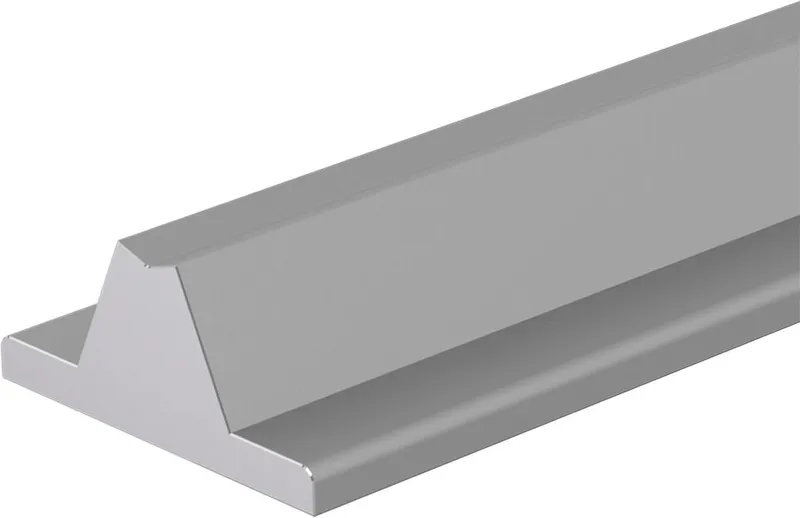

What is the Bosch Rexroth R105054000?

Shaft support rail

Shaft diameter d = 40

Version: Aluminum, flange

600 = standard length as per table

Shaft support rail material: Aluminum

Combined with linear sets, these shaft support rails can be used to create linear guides with very low height.

Extra rigidity. Carefully adapting the support rail to the linear bushing size produces the ideal pressure angle for fitting the shaft which, along with the large fastening bolts, ensures extra rigidity.

For use with open linear bushings

For long guides or high loads where self-supporting shafts cannot be used due to shaft warping

Unlimited length when using interconnecting shafts

Support rails for various requirements

Additional degrees of freedom in circumferential direction compared to profiled guide rails.

For applications where other linear guides tend to warp due to imprecise substructures.

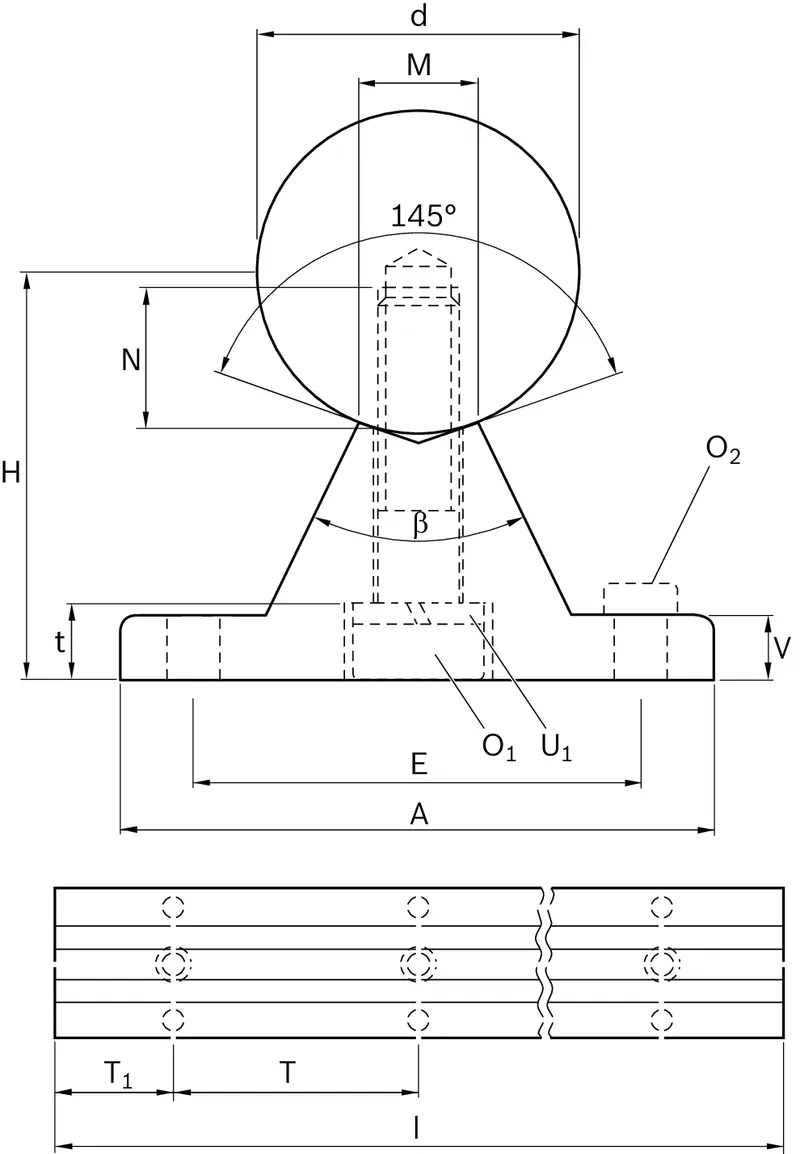

Specifications

Shaft diameter d [mm]	40.0
Material shaft support rails	Aluminum
Length L [mm]	600.0
Weight [kg]	2
Dimension A (profiled rail systems) [mm]	73
Dimension H [mm]	50.0
Dimension M [mm]	15
Dimension V [mm]	8
Angle β [°]	50
