Bosch Rexroth R101806060

SHAFT WITH SUPPORT WM-60-SFRA-H6CR

MPN: R101806060
Category: Precision steel shafts with shaft support rails

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R101806060?

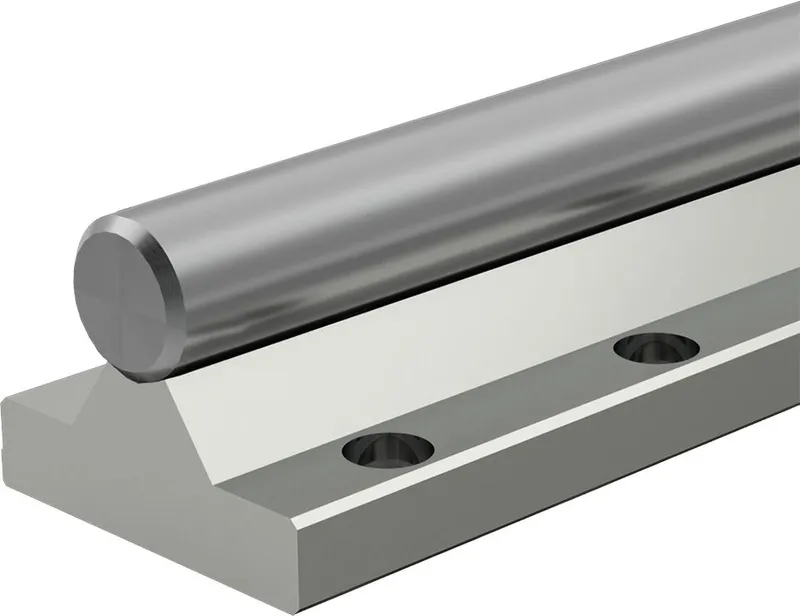

Shaft support rail with shaft mounted

made of heat-treated steel (hard chrome plated)

Shaft diameter d = 60

Tolerance = H6

Shaft support rail: Steel, flange, for radial linear bushings

Shaft support rail material: Steel

For use with open linear bushings

For long guides or high loads where self-supporting shafts cannot be used due to shaft warping

Unlimited length when using interconnecting shafts

Support rails for various requirements

Additional degrees of freedom in circumferential direction compared to profiled guide rails.

For applications where other linear guides tend to warp due to imprecise substructures.

Specifications

Shaft diameter d [mm]	60.0
Material of precision steel shafts	Heat-treated steel Cf53 hard chrome plated
Tolerance grade shaft	h6
Material shaft support rails	Steel
Mass m (kg/m) [kg/m]	70
Weight [kg]	0
Product information	Please ask for delivery time!

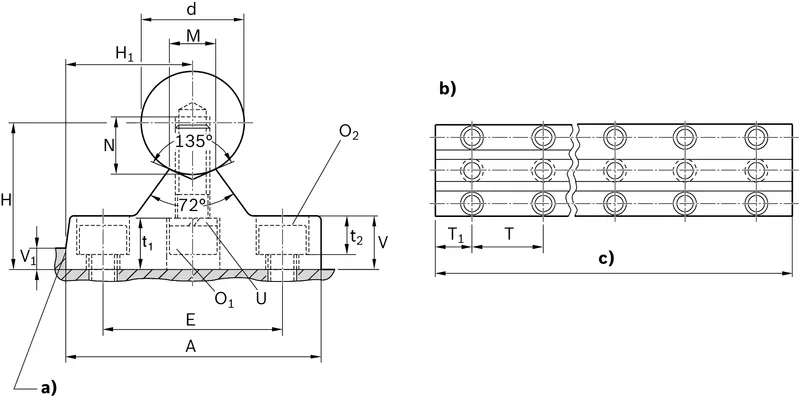

Dimension A (profiled rail systems) [mm]	150
Dimension E [mm]	110
Dimension H js7 [mm]	90
Dimension H1 js7 [mm]	75
Dimension M [mm]	27
Dimension N [mm]	32
Dimension O1 thread x lead [mm]	M20x60
Dimension O2 thread diameter	M20
Dimension t1 [mm]	34
Dimension t2 [mm]	25.5
Dimension U [mm]	20
Dimension V [mm]	34
Dimension V1 [mm]	13
