Bosch Rexroth R101803000

SHAFT WITH SUPPORT WM-30-SFRA-H6

MPN: R101803000
Category: Precision steel shafts with shaft support rails

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R101803000?

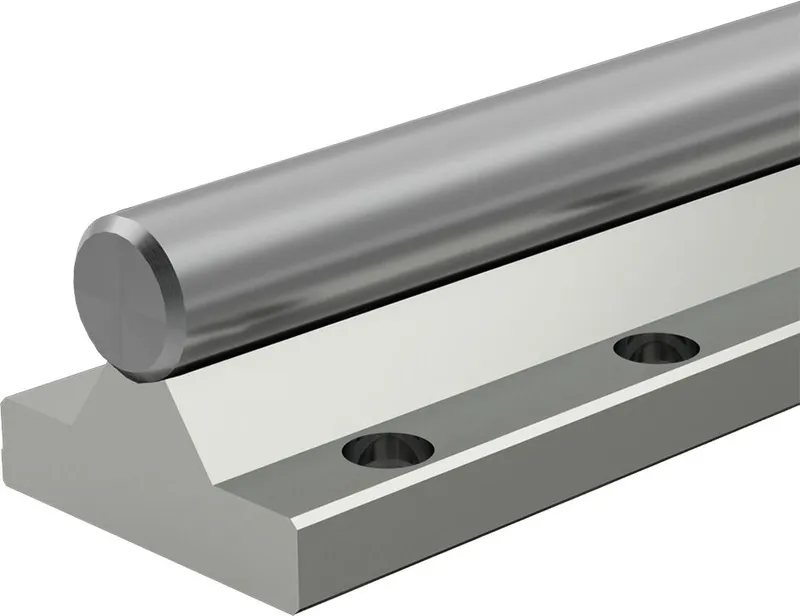

Shaft support rail with shaft mounted

made of heat-treated steel

Shaft diameter d = 30

Tolerance = H6

Shaft support rail: Steel, flange, for radial linear bushings

Shaft support rail material: Steel

For use with open linear bushings

For long guides or high loads where self-supporting shafts cannot be used due to shaft warping

Unlimited length when using interconnecting shafts

Support rails for various requirements

Additional degrees of freedom in circumferential direction compared to profiled guide rails.

For applications where other linear guides tend to warp due to imprecise substructures.

Specifications

Shaft diameter d [mm]	30.0
Material of precision steel shafts	Heat-treated steel Cf53
Tolerance grade shaft	h6
Material shaft support rails	Steel
Mass m (kg/m) [kg/m]	20.5
Weight [kg]	0
Product information	Please ask for delivery time!

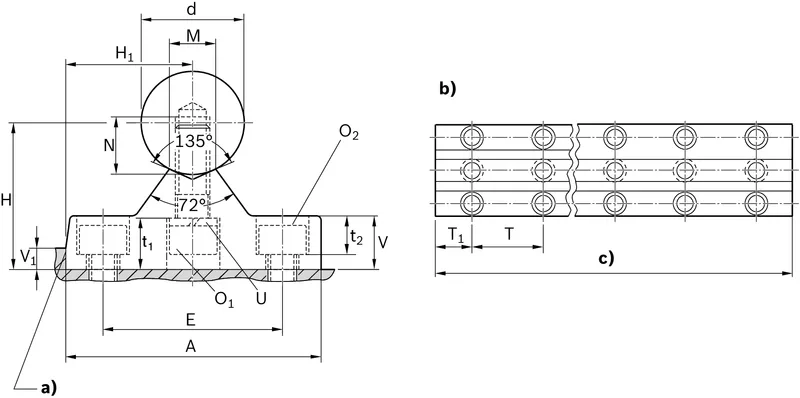

Dimension A (profiled rail systems) [mm]	80
Dimension E [mm]	55
Dimension H js7 [mm]	50
Dimension H1 js7 [mm]	40
Dimension M [mm]	13
Dimension N [mm]	17
Dimension O1 thread x lead [mm]	M10x30
Dimension O2 thread diameter	M10
Dimension t1 [mm]	22
Dimension t2 [mm]	13.5
Dimension U [mm]	10
Dimension V [mm]	19
Dimension V1 [mm]	7
