Bosch Rexroth R101552500

SHAFT WITH SUPPORT WM-25-AS2-H6

MPN: R101552500
Category: Precision steel shafts with shaft support rails

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R101552500?

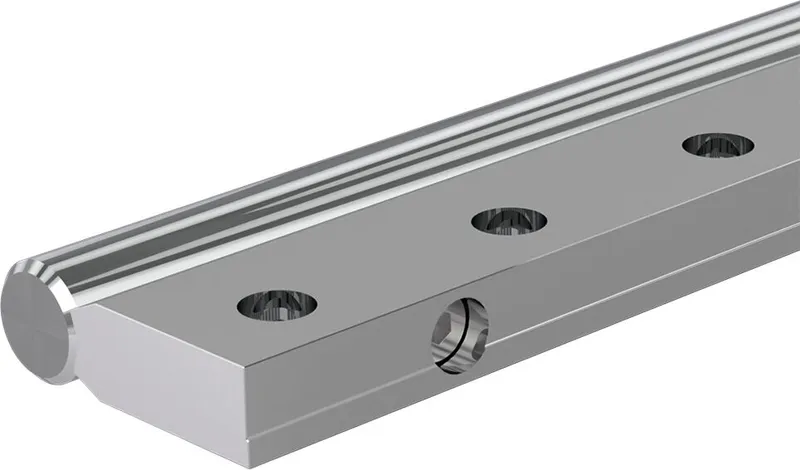

Shaft support rail with shaft mounted

made of heat-treated steel

Shaft diameter d = 25

Tolerance = H6

Shaft support rail: Aluminum, side mounting, bore spacing type 2

Combine with linear sets with side opening for heavy-duty linear guides

Reference edge makes aligning easier (installation)

Shaft support rail material: Aluminum

For use with open linear bushings

For long guides or high loads where self-supporting shafts cannot be used due to shaft warping

Unlimited length when using interconnecting shafts

Support rails for various requirements

Additional degrees of freedom in circumferential direction compared to profiled guide rails.

For applications where other linear guides tend to warp due to imprecise substructures.

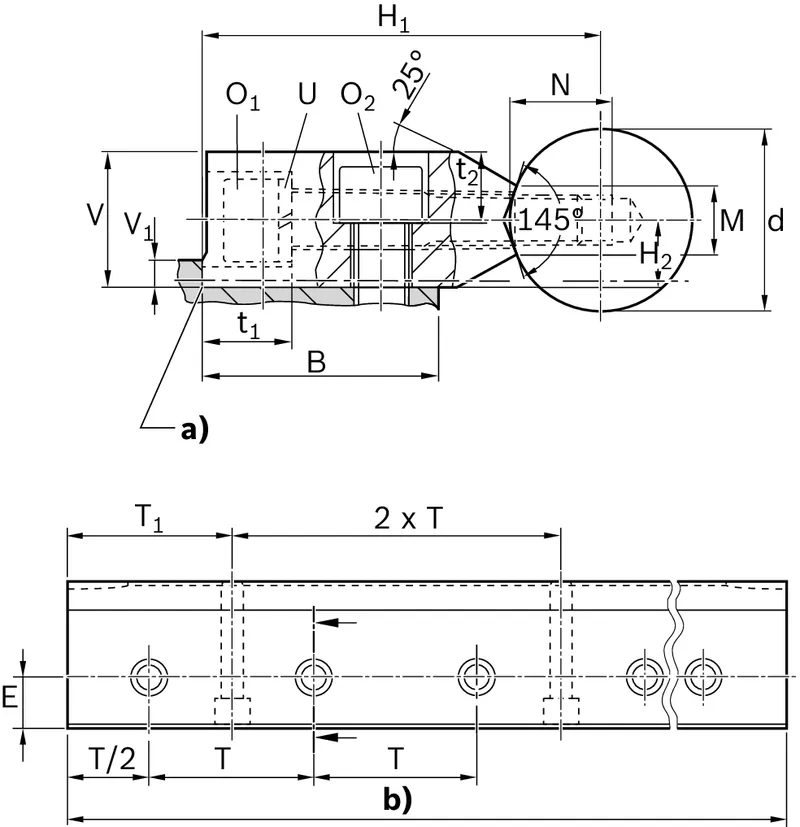

Specifications

Shaft diameter d [mm]	25.0
Material of precision steel shafts	Heat-treated steel Cf53
Tolerance grade shaft	h6
Material shaft support rails	Aluminum
Mass m (kg/m) [kg/m]	6.3
Weight [kg]	0
Dimension B (profiled rail systems) [mm]	36
Dimension E [mm]	18
Dimension H1 js6 [mm]	62
Dimension M [mm]	10.8
Dimension N [mm]	15
Dimension O1 thread x lead [mm]	M8x50
Dimension O2 thread diameter	M8x20
Dimension t1 [mm]	15
Dimension t2 [mm]	11
Dimension U [mm]	8
Dimension V [mm]	20
Dimension V1 max [mm]	5.5
