Bosch Rexroth R101452001

SHAFT WITH SUPPORT WM-20-AF2-H7

MPN: R101452001
Category: Precision steel shafts with shaft support rails

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R101452001?

Shaft support rail with shaft mounted

made of heat-treated steel

Shaft diameter d = 20

Tolerance = H7

Shaft support rail: Aluminum, flange, bore spacing type 2

Shaft support rail material: Aluminum

Combined with linear sets, these shaft support rails can be used to create linear guides with very low height.

Extra rigidity. Carefully adapting the support rail to the linear bushing size produces the ideal pressure angle for fitting the shaft which, along with the large fastening bolts, ensures extra rigidity.

For use with open linear bushings

For long guides or high loads where self-supporting shafts cannot be used due to shaft warping

Unlimited length when using interconnecting shafts

Support rails for various requirements

Additional degrees of freedom in circumferential direction compared to profiled guide rails.

For applications where other linear guides tend to warp due to imprecise substructures.

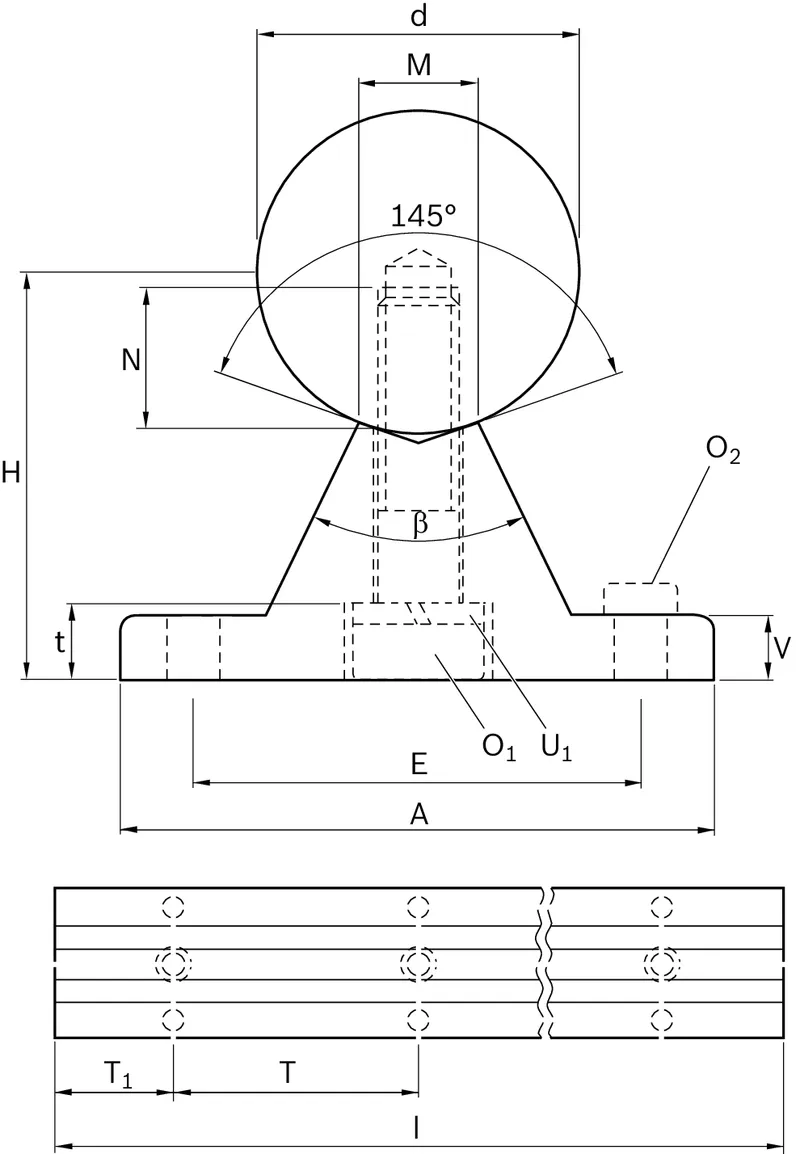

Specifications

Shaft diameter d [mm]	20.0
Material of precision steel shafts	Heat-treated steel Cf53
Tolerance grade shaft	h7
Material shaft support rails	Aluminum
Mass m (kg/m) [kg/m]	3.95
Weight [kg]	0
Dimension A (profiled rail systems) [mm]	52
Dimension E [mm]	37
Dimension H [mm]	32.0
Dimension M [mm]	8.3
Dimension N [mm]	11
Dimension O1 thread x lead [mm]	M6x25
Dimension O2 thread diameter	M6x16
Dimension t [mm]	8.6
Dimension U1 [mm]	6
Dimension V [mm]	6
Angle β [°]	50
