What is the Bosch Rexroth R101451231?

Shaft support rail with shaft mounted

made of corrosion-resistant steel (ISO 683-17)

Shaft diameter d = 12

Tolerance = H7

Shaft support rail: Aluminum, flange, bore spacing type 2

Shaft support rail material: Aluminum

Combined with linear sets, these shaft support rails can be used to create linear guides with very low height.

Extra rigidity. Carefully adapting the support rail to the linear bushing size produces the ideal pressure angle for fitting the shaft which, along with the large fastening bolts, ensures extra rigidity.

For use with open linear bushings

For long guides or high loads where self-supporting shafts cannot be used due to shaft warping

Unlimited length when using interconnecting shafts

Support rails for various requirements

Additional degrees of freedom in circumferential direction compared to profiled guide rails.

For applications where other linear guides tend to warp due to imprecise substructures.

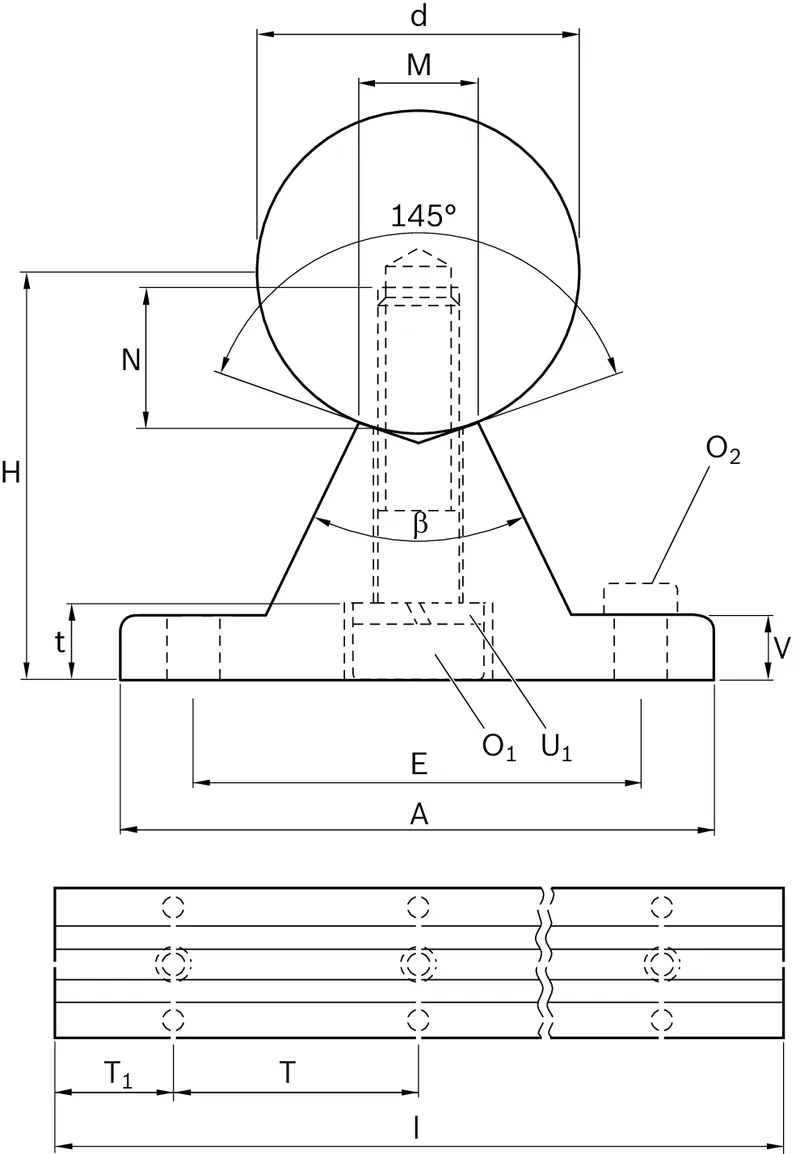

Specifications

Shaft diameter d [mm]	12.0
Material of precision steel shafts	Corrosion-resistant steel, X46Cr13
Tolerance grade shaft	h7
Material shaft support rails	Aluminum
Mass m (kg/m) [kg/m]	1.75
Weight [kg]	0
Dimension A (profiled rail systems) [mm]	40
Dimension E [mm]	29
Dimension H [mm]	22.0
Dimension M [mm]	5.8
Dimension N [mm]	8
Dimension O1 thread x lead [mm]	M4x20
Dimension O2 thread diameter	M4x12
Dimension t [mm]	4.5
Dimension U1 [mm]	4
Dimension V [mm]	5
Angle β [°]	50
